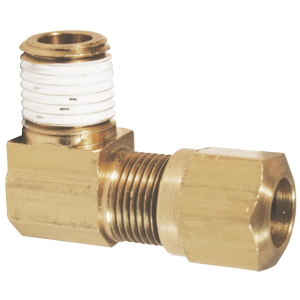

Dixon Valve 69NAB108VS

<p><strong>Applications </strong> </p> <ul><li>Designed for use in air brake systems or cab controls </li> </ul> <p><strong>Use </strong> </p> <ul><li>Utilize ribbed sleeve for compression and positive grip </li> <li>Compatible tubing: SAE J844 type A and B </li> </ul> <p><strong>Specifications </strong> </p> <ul><li>Meets D.O.T FMVSS 571.106, SAE J1131 and SAE J2494 </li> <li>Ref. SAE 100202 BA </li> </ul> <p><strong>Features </strong> </p> <ul><li>Positive grip </li> </ul> <p><strong>Construction </strong> </p> <ul><li>Machined from CA260, CA345 or CA377 brass </li> <li>Pre-applied thread sealant </li> <li>Thread sealant may be white or burnt orange </li> </ul> <p><strong>Installation </strong> </p> <ul><li>Cut tubing squarely- maximum of 15? angle allowable. </li> <li>Check that port or mating part is clean and free of debris. </li> <li>Insert tubing into fittings until it bottoms on seat. </li> <li>Tighten nut with wrench until one thread remains visible on the fittings body; (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench-tightened according to the tube size used. </li> </ul> <p><strong>Safety notes </strong> </p> <ul><li>WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. </li> </ul>
