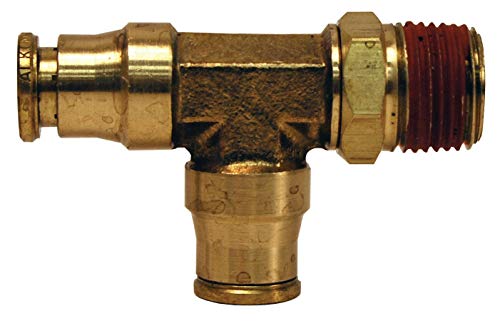

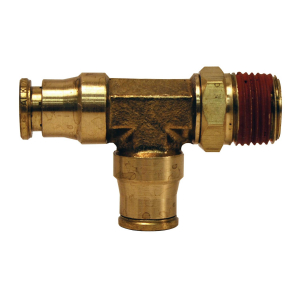

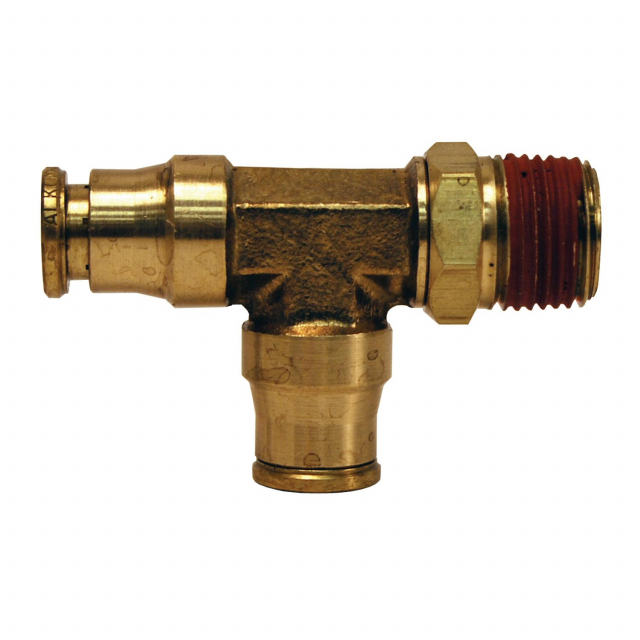

Toolfetch - Dixon Valve 71S8x4 1/4" Tube X 1/8" Male Nptf Brass
Weight:
0.00625
Weight:
0.00625 LB
Preferred Price:
16.09
Price:
16.09
Min Simple Price:
7.99
Absolute Min Price:
12.02
Min Price:
12.02
qty:
21
simpleSku:
NDkxNQ:::71S8X4
sku:
NDkxNQ::OC:71S8X4@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Suitable for vacuum service; working pressure: Suitable for use up to the maximum working pressure of the plastic tubing used. |
| Brand | Dixon Valve & Coupling |
| Description: | Brass Push-In Male Swiv Branch Tee 1/4" Tube x 1/8" M-NPTF (No Gskt) |
| Domestic/Import | Domestic |
| End Style | MNPT Swivel x Tube |
| Features | Positive seal: no leaks, after tubing is inserted, seal is made; secure tube retention: pulling on tubing only serves to tighten the connection; Full flow design provides up to 60% more flow than conventional fittings with internal tube supports. Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor. |
| Installation | Saves up to 75% of assembly time versus the standard compression fittings. Quick connect: simply push tubing in, no tools required. Quick disconnect: hold two fingers on insert and pull tubing out, no tools required. Reusable: connect and disconnect numerous times |
| Male Thread | NPTF |
| Male Thread Size | 1/8" |
| Male Thread Size, Thread | 1/8 in |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | Forged Brass, Brass |
| Max Temp (?F) | 200 |
| MFG Part #:, MPN | 71S8X4 |
| Min. Temp (?F) | -10 |
| Nominal Size | 1/8 x 1/4 in |
| Product | Tees |
| Product Type | Simple product |
| Safety Notes | Fittings are suitable for use up to the maximum working pressure of the plastic tubing used |
| Temperature Range | -10?F to 200?F (-23?C to 93?C) |
| Temperature range | -10F to 200F (-23C to 93C) |
| Temperature Rating | -10 to 200 deg F |
| Thread | NPT |
| Tube O.D. | 1/4 in |
| Tube O.D., Tube OD | 1/4" |
| UPC: | 089109863648 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.089500 |
| Weight Lb | 0.0895 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-71S8X4 | 7.99 | 7.99 | 1 | In Stock | DIXON VALVE | 7.99 @ Qty: 1+ | ||
 | andersonprocess.com | 71S8X4 | 8.81 | 8.81 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.0895 | 8.81 @ Qty: 1+ |
 | usmegastore.com | 71S8X4 | 8.96 | 8.96 | 1 | In Stock | Dixon Valve | 0.0895 | 8.96 @ Qty: 1+ | |
 | heavydutydepot.com | 71S8X4 | 8.96 | 48.384 | 12 | In Stock | Dixon | 8.96 @ Qty: 12+ | ||
 | Megadepot | 71S8X4 | 9.02 | 9.02 | 1 | In Stock | Dixon Valve | 0.0895 | 9.02 @ Qty: 1+ | |
| kscdirect.com | DIX 71S8X4 | 9.64 | 9.64 | 1 | In Stock | Dixon Valve & Coupling Co | 9.64 @ Qty: 1+ | |||
 | MRO Supply | 105736 | 10.95 | 24.09 | 4 | In Stock | Dixon | 10.95 @ Qty: 4+ | ||
 | industrialzone.com | 71S8X4 | 13.17 | 92.19 | 16 | In Stock | Dixon | 0.1 | 13.17 @ Qty: 16+ | |
| AmazonTP | B00IADSFOC | 15.2 | 15.2 | 1 | In Stock | 2 | Dixon Valve & Coupling | 15.2 @ Qty: 1+ | ||
 | Wilson | 71S8X4 | 33.54 | 33.54 | 1 | In Stock | Dixon | 33.54 @ Qty: 1+ |
