mpn:
brand:
manufacturer:
MPN:
Description:

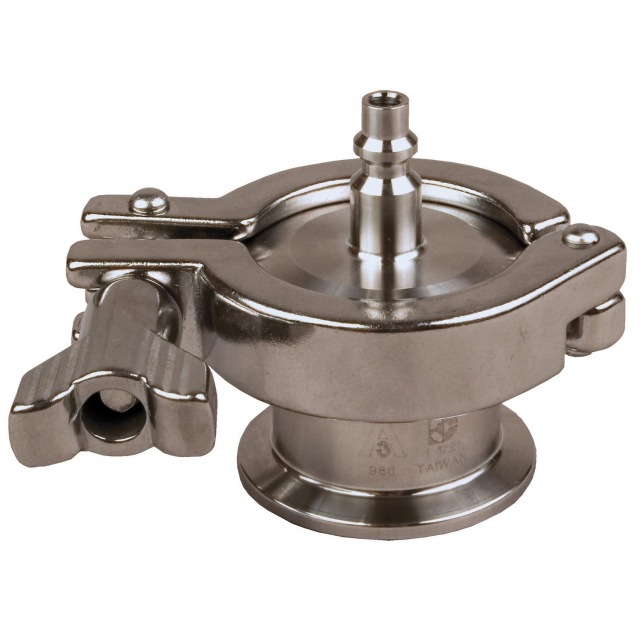

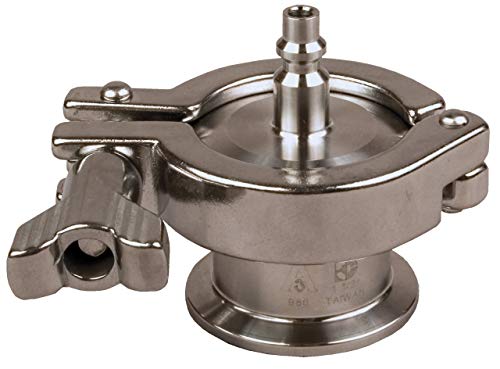

Great deal on the Dixon Valve B45AB-R400 4"air Blow-316,quick Disconnect
Weight:
2.6
Weight:
0.159375 LB
Preferred Price:
531.07
Price:
531.07
Min Simple Price:
300.04
Absolute Min Price:
426.05
Min Price:
426.05
Dimensions:
[3.0, 3.0, 3.0]
qty:
21
simpleSku:
NDkxNQ:::B45AB-R400
sku:
NDkxNQ::BD:B45AB-R400@y0
condition:
11
seller:
andersonprocess.com
amzMan:
dixon valve
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| : | N/A |
| Application | The air blow check valve is designed to pressurize lines with air to clean out product or cleaning solutions. It is fail-safe because the simple air-to-open, spring-to-close mechanism prevents backflow. Can be used with a check valve. |
| Body Material, Material | 316L stainless steel |
| Brand | Dixon Valve & Coupling |
| Construction, Seat | EPDM stem seat and gasket |
| Description: | 4" B45AB AIR BLOW CK VLV 316 QUICK DISCONNECT |
| End Style | Quick Connect Plug |
| Inlet to Outlet Length | 2.56 in |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Max operating pressure (psi) | 145 |
| Max Temp (?F) | 212 |
| Max temperature | 212F (100C) |
| Maximum Operating Pressure, Pressure Rating, PSI | 145 PSI |
| Maximum Temperature | 212?F (100?C) |
| MFG Part #:, MPN | B45AB-R400 |
| Nominal Size, Size | 4 in |
| Note | Filter disc (optional) must be used when installed for Accepted Practice 3A 604-05, Supplying Air under Pressure in Contact with Milk, Milk products and Product Contact. |
| Product | Air Blow Check Valves |
| Product Type | Simple product |
| Seat, Softgoods Material, Trim Material | EPDM |
| Seat/O-Rings | EPDM Stem Seat & Gasket |
| Size | 4" |
| Specifications | 3A authorized 58-00 |
| Temperature Rating | 212 deg F |
| Type | Air Blow |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 2.550000 |
| Weight Lb | 2.5500 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | MRO Supply | 107231 | 261.64 | 261.64 | 1 | In Stock | Dixon Sanitary Fittings | 261.64 @ Qty: 1+ | ||
 | andersonprocess.com | B45AB-R400 | 300.04 | 300.04 | 1 | In Stock | 26 | Dixon Valve & Coupling | 2.55 | 300.04 @ Qty: 1+ |
 | toolfetch.com | DIX-B45AB-R400 | 305.0 | 305.0 | 1 | In Stock | DIXON VALVE | 305.0 @ Qty: 1+ | ||
 | usmegastore.com | B45AB-R400 | 321.4 | 321.4 | 1 | In Stock | Dixon Valve | 2.55 | 321.4 @ Qty: 1+ | |
 | Megadepot | B45AB-R400 | 321.4 | 321.4 | 1 | In Stock | Dixon Valve | 2.55 | 321.4 @ Qty: 1+ | |
 | heavydutydepot.com | B45AB-R400 | 321.4 | 321.4 | 1 | In Stock | Dixon | 321.4 @ Qty: 1+ | ||
| motionindustries.com | 03015487 | 404.35 | 404.35 | 1 | In Stock | Dixon Sanitary | 404.35 @ Qty: 1+ | |||
| kscdirect.com | DIX B45AB-R400 | 414.82 | 414.82 | 1 | In Stock | Dixon Valve & Coupling Co | 414.82 @ Qty: 1+ | |||
 | industrialzone.com | B45AB-R400 | 489.56 | 489.56 | 1 | In Stock | Dixon | 2.55 | 489.56 @ Qty: 1+ | |
 | Wilson | B45AB-R400 | 1231.2 | 1231.2 | 1 | In Stock | Dixon | 1231.2 @ Qty: 1+ |
