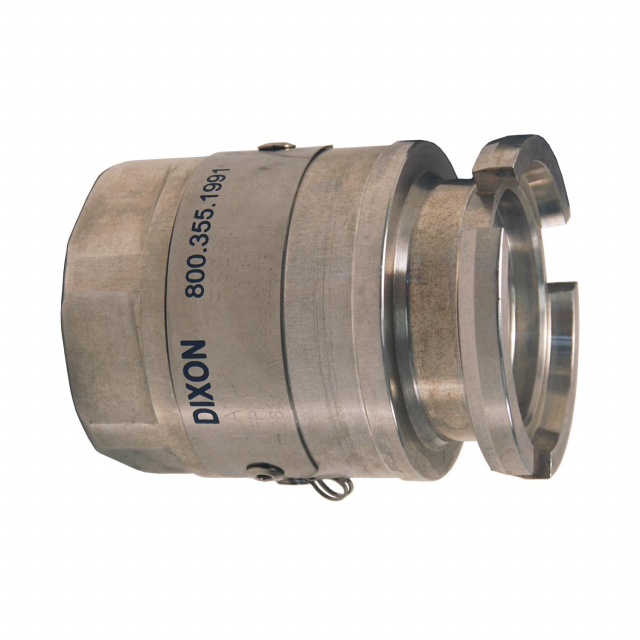

Toolfetch - Dixon Valve DDA100AL 1" Alum Adapter X Female Npt
Weight:
0.4
Weight:
0.4 LB
Preferred Price:
470.82
Price:
470.82
Min Simple Price:
266.0
Absolute Min Price:
377.72
Min Price:
377.72
Dimensions:
[5.0, 5.0, 5.0]
qty:
21
simpleSku:
ODg4NQ:::DDA100AL
sku:
ODg4NQ::9W:DDA100AL@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Application | Dry disconnect couplings are designed for the quick and spill free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids. Use with composite (Polyeten PE-HD 300) plugs for protection against corrosion; plugs withstand hot and cold environment. |
| Body Size | 56 mm, 2.20" |
| Brand | Dixon Valve & Coupling |
| Construction | Aluminum poppet; stainless steel internal parts |
| Features | Conical valve seat reduces the risk for piston blow out; PTFE bearing between the piston shaft and the piston guide eliminate the risk for seizure; Easy to handle - push and turn - free flow, turn and pull - closed; Time saving - no need to drain hoses or pipe systems; Economical - no loss or spillage of liquids at connection or disconnection; Safety - the valve cannot be opened until the unit is coupled; Environmental friendly - accidental spillage eliminated when properly used; Safe and reliable - due to rugged construction; Product life - uncomplicated design and high quality materials ensures long product life; Selectivity - to avoid product contamination, selective versions of the couplers and adapters are available. Contact Anderson Process for further information. |
| Female Thread | NPT |
| Female Thread Size | 1 in, 1" |
| Installation | Adapter is usually installed on the tank or manifold |
| Interchange | Compatible with Mann-Tek, Avery Hardoll and Todo-matic? and any other product produced according to NATO standard STANAG 3756 |
| Material | Aluminum |
| MPN | DDA100AL |
| Product | Dry Disconnects |
| Product Type | Simple product |
| PSI | 230 PSI |
| Safety Notes | Working pressure is based on PSI at ambient temperature 70?F, for pressure ratings at other temperatures Contact Anderson Process. |
| Seal | FKM (FPM), FKM/FPM |
| Series | Mann Tek |
| Specifications | Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C. |
| Style | Mann Tek Style |
| Thread | 1 in |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.700000 |
| Weight Lb | 0.4000 |
| Working Pressure | 230 PSI |
| Working pressure (psi) | 230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-DDA100AL | 266.0 | 266.0 | 1 | In Stock | DIXON VALVE | 266.0 @ Qty: 1+ | ||
 | MRO Supply | 108956 | 289.77 | 289.77 | 1 | In Stock | Dixon | 289.77 @ Qty: 1+ | ||
 | usmegastore.com | DDA100AL | 298.6 | 298.6 | 1 | In Stock | Dixon Valve | 0.4 | 298.6 @ Qty: 1+ | |
 | Megadepot | DDA100AL | 298.6 | 298.6 | 1 | In Stock | Dixon Valve | 0.4 | 298.6 @ Qty: 1+ | |
 | heavydutydepot.com | DDA100AL | 298.6 | 298.6 | 1 | In Stock | Dixon | 298.6 @ Qty: 1+ | ||
 | andersonprocess.com | DDA100AL | 330.36 | 330.36 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.7 | 330.36 @ Qty: 1+ |
 | industrialzone.com | DDA100AL | 413.7 | 413.7 | 1 | In Stock | Dixon | 0.4 | 413.7 @ Qty: 1+ | |
 | Wilson | DDA100AL | 1065.52 | 1065.52 | 1 | In Stock | Dixon | 1065.52 @ Qty: 1+ |
