mpn:
brand:
manufacturer:
MPN:
Description:

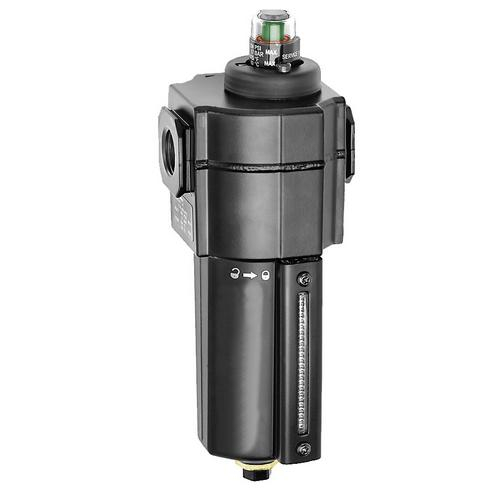

On Sale Dixon Valve F74C-4A-MB 1/2" Coalescing Filter, Std Flow Metal Bowl, Auto Drain
Weight:
1.97
Weight:
1.97 LB
Preferred Price:
396.48
Price:
396.48
Min Simple Price:
224.0
Absolute Min Price:
318.08
Min Price:
318.08
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
ODg4NQ:::F74C-4A-MB
sku:
ODg4NQ::A0:F74C-4A-MB@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Bowl Material, Material | Aluminum |
| Brand | Dixon Valve & Coupling |
| Data | 250 PSI Inlet Pressure |
| Description | Standard Flow |
| Description: | 1/2" Std Flow Coalescing Filter w/ Metal Bowl & Auto Drain |
| Features | Automatic Drain; Metal Bowl; quick-release bayonet bowl; prismatic lens liquid level indicator; provides air quality class 2 hydrocarbon and class 1 particulate removal per ISO 8573-1; element removes particles down to 0.01mm. Maximum remaining oil content of air leaving the filter is 0.01 ppm at 70?F (21?C) with an inlet concentration of 8 ppm; service life indicator turns from green to red when element needs to be replaced |
| Filter Rating | 0.01 micron |
| Flow, Flow Rate | 75 SCFM Dry, 35 SCFM Saturated |
| Inlet Pressure | 250 PSI at 150F (66C) |
| Installation | In-line or modular installation |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Maximum Temperature | 150?F (65?C) |
| MFG Part #:, MPN | F74C-4A-MB |
| Note | For maximum service life install a general purpose filter upstream of the oil removal filter. |
| Overall Length | 9.8 in |
| Port, Port Size | 1/2 in |
| Port, Port Size | 1/2" |
| Pressure Range | 250 psig |
| Product | Coalescing Filters |
| Product Type | Simple product |
| Safety Notes | FRL's are designed for air service only, unless otherwise indicated. SCFM ratings gievn at 90 PSIG inlet pressure. |
| Series | 1 Series F74C, Series 1 |
| Temperature Rating | -30 to 150 deg F |
| UPC: | 089109854547 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 1.965000 |
| Weight Lb | 1.9650 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-F74C-4A-MB | 224.0 | 224.0 | 1 | In Stock | DIXON VALVE | 224.0 @ Qty: 1+ | ||
 | Megadepot | F74C-4A-MB | 247.4 | 247.4 | 1 | In Stock | Dixon Valve | 1.965 | 247.4 @ Qty: 1+ | |
 | usmegastore.com | F74C-4A-MB | 247.4 | 247.4 | 1 | In Stock | Dixon Valve | 1.965 | 247.4 @ Qty: 1+ | |
 | heavydutydepot.com | F74C-4A-MB | 247.4 | 247.4 | 1 | In Stock | Dixon | 247.4 @ Qty: 1+ | ||
 | MRO Supply | 109569 | 253.65 | 253.65 | 1 | In Stock | Dixon | 253.65 @ Qty: 1+ | ||
 | andersonprocess.com | F74C-4A-MB | 289.46 | 289.46 | 1 | In Stock | 26 | Dixon Valve & Coupling | 1.965 | 289.46 @ Qty: 1+ |
| kscdirect.com | DIX F74C-4A-MB | 304.66 | 304.66 | 1 | In Stock | Dixon Valve & Coupling Co | 304.66 @ Qty: 1+ | |||
 | industrialzone.com | F74C-4A-MB | 356.05 | 356.05 | 1 | In Stock | Dixon | 1.97 | 356.05 @ Qty: 1+ | |
| motionindustries.com | 05243471 | 406.25 | 406.25 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 406.25 @ Qty: 1+ | |||
 | Wilson | F74C-4A-MB | 928.3 | 928.3 | 1 | In Stock | Dixon | 928.3 @ Qty: 1+ |
