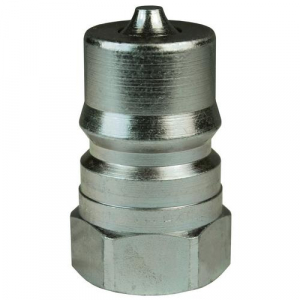

Dixon Valve H3F3
Dixon Valvezoom
mpn:
manufacturer:
MPN:
Description:
<p><strong>Dixon, H3F3, 3/8" NPTF DQC H-Series ISO-B Steel Industrial Interchange Female Plug </strong> </p> <p><strong>Construction </strong> </p> <ul><li>Machined components are manufactured using solid bar stock </li> <li>Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life </li> <li>Steel componentry is plated using ROHS Compliant Trivalent Chrome </li> <li>Steel Nipples are hardened to provide heavy duty performance and resist brinelling </li> </ul> <p><strong>Available Options </strong> </p> <ul><li>Contact Us for all available option adders </li> <li>Oxy-Clean treatment is available </li> </ul> <p><strong>Compatibility & Interchange Data </strong> </p> <ul><li>Interchangeable to ISO7241 Series 'B' </li> <li>Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX </li> </ul>

Attributes

Key Value
Body Size3/8"
Burst Pressure16500 PSI (450 bar)
Hex7/8"
Length1.70" (43.2mm)
MaterialSteel
Maximum OD0.97" (24.6mm)
Maximum Operating Pressure4000 PSI (275 bar)
Temperature Range-40?F to +250?F (-40?C to +121?C)
ThreadNPTF
Thread Size3/8"-18
Weight Lb0.1300
