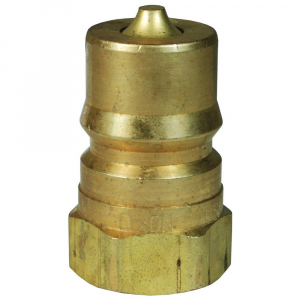

Dixon Valve HS4F4-B

<p><strong>Specifications </strong> </p> <ul><li>Rated pressure for connected Brass Coupler and Brass Plug: 200 PSI (14 bar) Maximum Working and 11,500 PSI (750 bar) burst </li> </ul> <p><strong>Construction </strong> </p> <ul><li>Machined components are manufactured using solid bar stock </li> <li>Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life </li> </ul> <p><strong>Compatibility & Interchange Data </strong> </p> <ul><li>Interchangeable to ISO7241 Series 'B' </li> <li>Parker 60-Series Steam Couplings </li> </ul> <p><strong>Safety notes </strong> </p> <ul><li>Maximum working pressure has been calculated using standard saturated steam at 194?C (382?F) for general purpose continuous service. For advanced operating pressure or super-heated steam applications, contact Dixon for further information </li> <li>Do not disconnect steam couplings while under pressure! Maximum operating temperature for steam service couplings is 194?C (382?F), with an intermittent maximum temperature of 204?C (400?F). Be sure to use safety chains, or equivalent means, to prevent the line from thrashing around in a case where the coupling becomes disconnected </li> <li>WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling </li> </ul>
