Description:

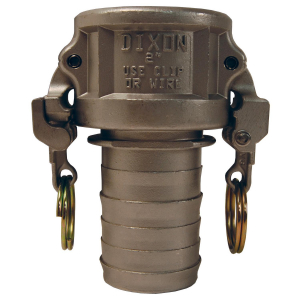

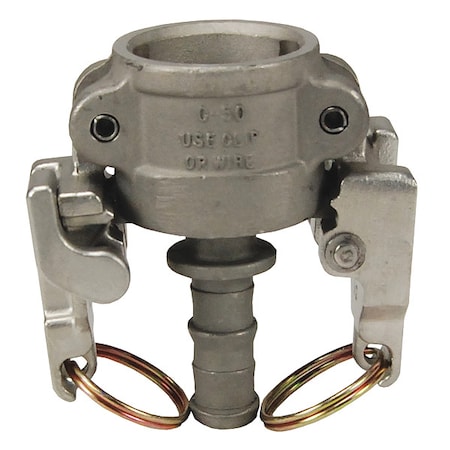

Great deal on the Dixon Valve RC050EZ 3/4" Stainless Ez Bosslock Female
Weight:
0.92
Weight:
0.92 LB
Preferred Price:
108.5
Price:
108.5
Min Simple Price:
59.29
Absolute Min Price:
84.19
Min Price:
84.19
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
ODg4NQ:::RC050EZ
sku:
ODg4NQ::8U:RC050EZ@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed for use with liquids, consult Anderson Process for specific recommendations. |
| Basic Pipe Fitting Material | Metal |
| Body Material, Material, Pipe Fitting Material | 316 Stainless Steel |
| Brand Name | DIXON? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Connection Type, Fitting Connection Type | Hose Shank |
| Construction | Buna-N Gasket |
| Coupler Size, Coupling Size, For Hose I.D., Hose Fitting Size, Hose Size, Socket"side Diameter | 1/2" |
| Coupling Component | Socket |
| Coupling Type, Type | Type C |
| Description: | 3/4" EZ Bosslock Fem Coupler x 1/2" Hose Shank - 316SS |
| Domestic/Import | Domestic |
| End Style | Female Coupler x Hose Shank |
| Features | Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm. Rotating action helps keep the locking device free of debris. Designed to protect critical parts from impact and to withstand rugged use. |
| Fitting Type | Male Hose Shank |
| Fitting/Connector Type | Reducing Coupling |
| Fittings Sub-Category | Couplers |
| Gasket Material | Nitrile |
| Hose Fitting Gender | Male |
| How it works | To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic. |
| Includes Locking Arm | Yes |
| Item | Cam and Groove Coupling |
| Manufacturer Part Number, MFG Part #:, MPN | RC050EZ |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Max operating pressure (psi) | 150 |
| Max. Working Pressure @ 70 F, Maximum Operating Pressure, Pressure Rating, PSI | 150 PSI |
| Nominal Size | 3/4 x 1/2 in |
| Note | If the rotating lever is not flush with the handle, it is not properly engaged. |
| Options | Other gasket types are available, Contact Anderson Process. |
| Overall Length | 3-7/64" |
| Package Quantity | 1, 1/Each |
| Product | Type C Coupler |
| Product Type | Simple product |
| Safety Notes | Under no circumstances should cam and groove couplings be used for compressed air or steam service! Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use; Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70?F / 21?C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Anderson Process. |
| Seal | Nitrile rubber, Buna-N |
| Series | EZ Boss-Lock? |
| Size | 3/4" x 1/2" (20mm x 15mm), 3/4" x 1/2", 3/4 in x 1/2 in (20 mm x 15 mm) |
| Socket Inside Diameter | 1/2 in |
| Specifications | Produced to interchange with all product produced to Commercial Item Description A-A-59326D. |
| Type | Type-C |
| UPC, UPC: | 089109803798 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.920000 |
| Weight Lb | 0.9200 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-RC050EZ | 59.29 | 59.29 | 1 | In Stock | DIXON VALVE | 59.29 @ Qty: 1+ | ||
 | usmegastore.com | RC050EZ | 70.11 | 70.11 | 1 | In Stock | Dixon Valve | 0.92 | 70.11 @ Qty: 1+ | |
 | Megadepot | RC050EZ | 70.11 | 70.11 | 1 | In Stock | Dixon Valve | 0.92 | 70.11 @ Qty: 1+ | |
 | heavydutydepot.com | RC050EZ | 70.11 | 98.154 | 2 | In Stock | Dixon | 70.11 @ Qty: 2+ | ||
 | andersonprocess.com | RC050EZ | 72.1 | 72.1 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.92 | 72.1 @ Qty: 1+ |
 | Zoro | G1425122 | 75.89 | 75.89 | 1 | In Stock | Dixon Valve & Coupling | 0.92 | 75.89 @ Qty: 1+ | |
 | MRO Supply | 112795 | 75.89 | 75.89 | 1 | In Stock | Dixon | 75.89 @ Qty: 1+ | ||
| kscdirect.com | DIX RC050EZ | 79.0 | 79.0 | 1 | In Stock | Dixon Valve & Coupling Co | 79.0 @ Qty: 1+ | |||
 | industrialzone.com | RC050EZ | 92.7 | 166.86 | 3 | In Stock | Dixon | 0.92 | 92.7 @ Qty: 3+ | |
 | hanessupply.com | RC050EZ-10639 | 106.19 | 106.19 | 1 | In Stock | Dixon Valve & Coupling | 106.19 @ Qty: 1+ | ||
| motionindustries.com | 01604970 | 126.93 | 126.93 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 126.93 @ Qty: 1+ | |||
 | Wilson | RC050EZ | 257.48 | 257.48 | 1 | In Stock | Dixon | 257.48 @ Qty: 1+ |
