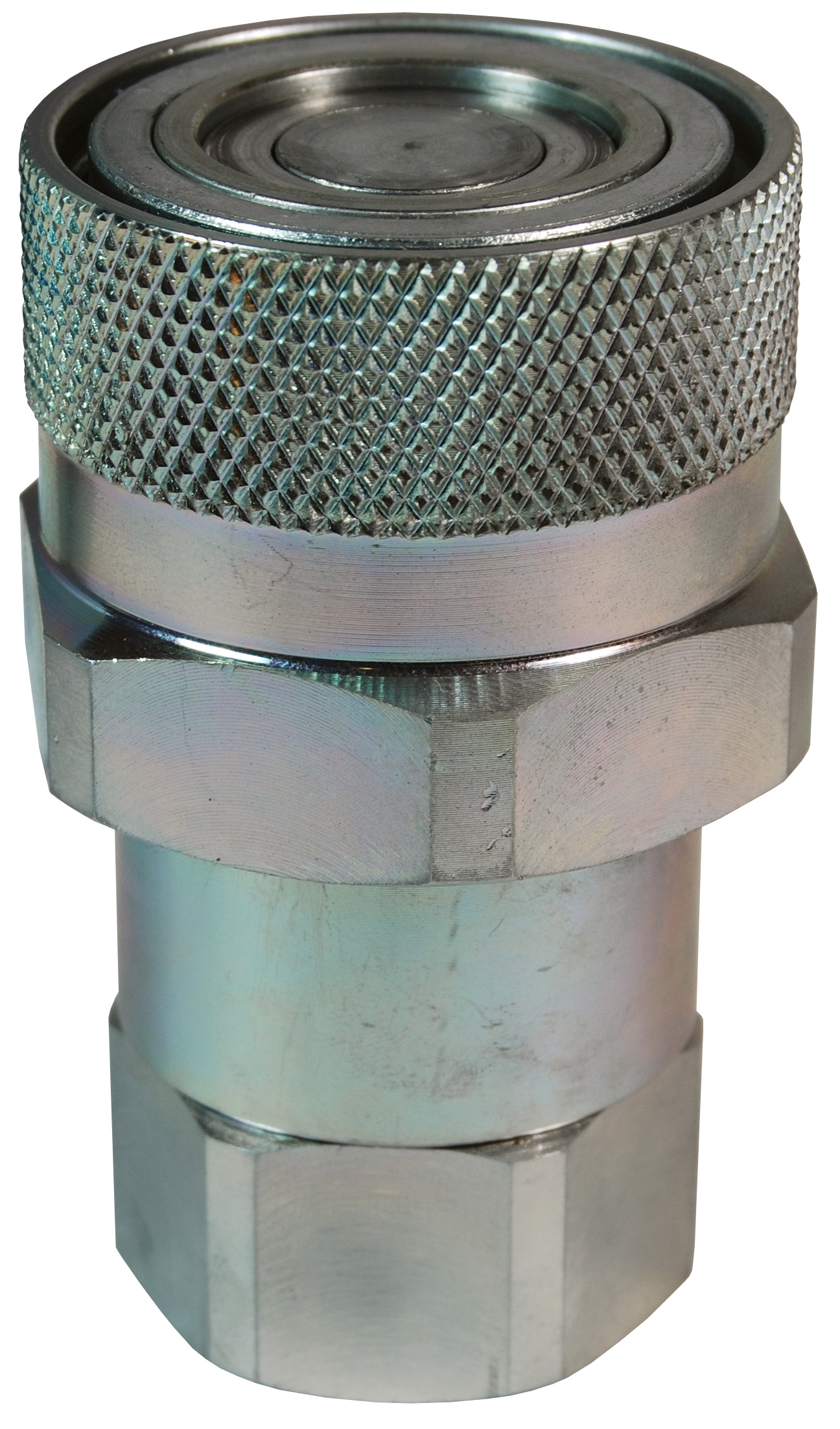

10VEPOF10 DIXON VALVE & COUPLING | Search our online catalog of Hose and Fittings. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Body size | 1-1/4" |
| Compatibility & interchange data | Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series, and Holmbury HFT Series |
| Domain | CAN; SGP; CHN; AUS; USA |
| Flow | 46.4 GPM (174 L/min) |
| Hex | 55 mm |
| Length | 4.40" |
| Length (metric) | 111.8mm |
| Material | Steel |
| Maximum od | 2.70" |
| Maximum od (metric) | 68.6mm |
| Safety notes | WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov |
| Specifications | Maximum Impulse Pressure? : 7000 PSI (48 MPa); Burst Pressure Connected: 20000 PSI (138 MPa); Burst Pressure Coupler: 14500 PSI (100 MPa); Maximum Pressure Connect & Disconnect? : 3625 PSI (25 MPa) |
| Thread | Female ORB |
| Thread Size | 1-5/8" - 12 |
| Weight lb | 3.71 |
| Working Pressure | 5000 PSI (40 MPa)? |
