mpn:
brand:
manufacturer:
MPN:
Description:

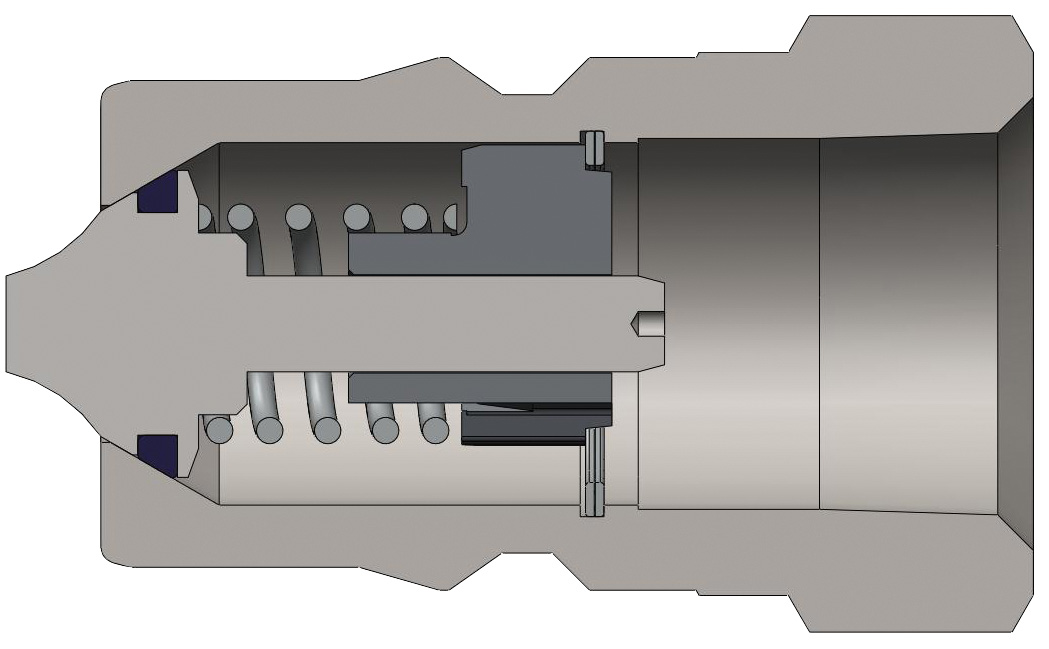

H2F2 DIXON VALVE & COUPLING | Search our online catalog of Hose and Fittings. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Available options | Contact Dixon for all available option adders; Oxy-Clean treatment is available |
| Body size | 1/4" |
| Burst Pressure | 22500 PSI (1550 bar) |
| Compatibility & interchange data | Meets dimensional requirements of ISO 7241 Series B; Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series `HNV`, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX |
| Domain | ARE; FIN; DNK; NOR; IRL; SWE; GBR; CAN; SGP; CHN; AUS; USA |
| Hex | 3/4" |
| Length | 1.55" |
| Length (metric) | 39.4mm |
| Material | Steel |
| Maximum od | 0.83" |
| Maximum od (metric) | 21.1mm |
| Maximum operating pressure | 5000 PSI (345 bar) |
| Safety notes | WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov |
| Temperature range | -40?F to +250?F |
| Temperature range (metric) | -40?C to +121?C |
| Thread | Female NPTF |
| Thread Size | 1/4"-18 |
| Weight lb | 0.09 |
