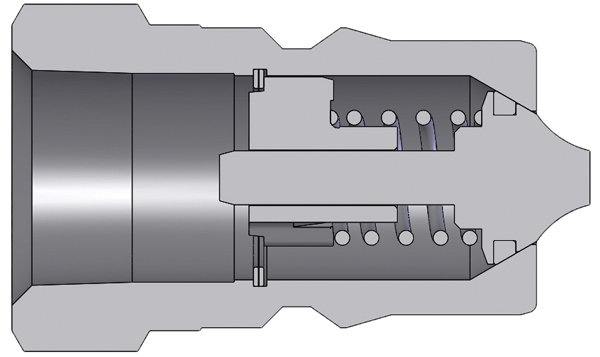

HS4F4-S DIXON VALVE & COUPLING | Search our online catalog of Hose and Fittings. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Applications | Designed exclusively for steam applications |
| Body size | 1/2" |
| Compatibility & interchange data | Interchangeable to ISO7241 Series `B`; Parker 60-Series Steam Couplings |
| Construction | Machined components are manufactured using solid bar stock; Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.; Special high-temp EPDM O-rings designed for steam service |
| Domain | GBR; DNK; SWE; IRL; NOR; FIN; ARE; USA; AUS; CHN; IND; SGP; CAN |
| Hex | 1-1/16" |
| Length | 1.94" |
| Length (metric) | 49.3mm |
| Material | 303 Stainless Steel |
| Maximum od | 1.17" |
| Maximum od (metric) | 29.7mm |
| Pressure rating | Rated to 200 PSI gauge saturated steam 382?F (194?C) |
| Temperature range | -70?F to +400?F |
| Temperature range (metric) | -57?C to +204?C |
| Thread | Female NPTF |
| Thread Size | 1/2"-14 |
| Weight lb | 0.29 |
