- mpn006595
- brandname: Dodge
- manufacturername: Dodge

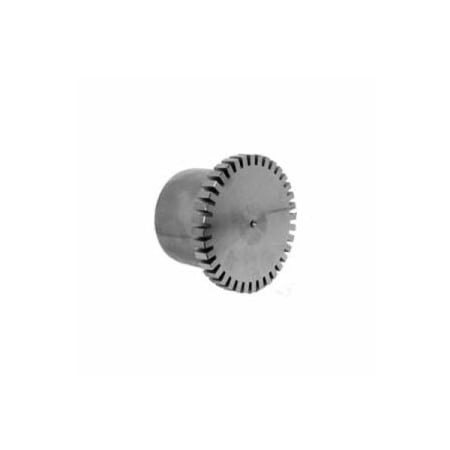

Dodge - 006595 - - Dodge 1040t Hub 1 1/4
- PartNumber: 006595
- PackageQuantity: 1
- Manufacturer: Dodge
Attributes
| Key | Value |
|---|
| Angular misalignment | 0.5000, 0.5 |
| Axial misalignment | 0.3750 in, 9.525 mm |
| Bore diameter actual | 1.2500 in, 31.75 mm |
| Bore fit | Clearance |
| Bore length | 2.0000 in, 50.8 mm |
| Bore tolerance standard | AGMA 9002 |
| bore type: | Finished w/ Keyway |
| Coupling component | Hub |
| coupling outside diamet. | 4.22 (T10) in, 5.06 (T2. |
| coupling overall length: | 4.13 in |
| Coupling size | 1040 |
| coupling size code: | 1040 |
| Coupling style | Grid |
| Coupling type | Metallic |
| horsepower @ 100 rpm: | 3.49 hp |
| Horsepower per 100 rat | 3.4900 hp, 2.602 kW |
| hub material: | Steel |
| hub type: | Standard Grid Taper Hub |
| keyway size: | 1/4 x 1/8 in |
| Lubrication type | Grease |
| Max temperature rating | 215.0000 F, 101.667 C |
| maximum rpm: | 6000 RPM |
| Min temperature rating | -22.0000 F, -30.0 C |
| operating temperature r. | -35 to +210 |
| Package Quantity | 1 |
| Parallel misalignment | 0.0050 in, 0.127 mm |
| Rated Torque | 2200.0000 lbf, 9786.088. |
| Shaft attachment | Bored to size |
| Shaft spacing | Close coupled |
| torque capacity: | 2200 in-lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 006595 | 80.47 | 1 | In Stock | | Dodge | | 80.47 @ 1 |
| MRO Supply | 117272 | 80.47 | 1 | In Stock | | Dodge | | 80.47 @ 1 |
 | Purvis | 1040T HUB 1 1/4 | 93.16 | 1 | In Stock | | Dodge | | 93.16 @ 1 |
 | Zoro | G409915520 | 94.45 | 1 | 1 | | Dodge | | 94.45 @ 1 |
 | motionindustries.com | 00512272 | 97.54 | 1 | In Stock | | Dodge | | 97.54 @ 1 |
| cbtcompany.com | 006595 | 110.57 | 1 | In Stock | | Dodge | | 110.57 @ 1 |
