- mpn20Q20H14
- brandname: Dodge
- manufacturername: Dodge

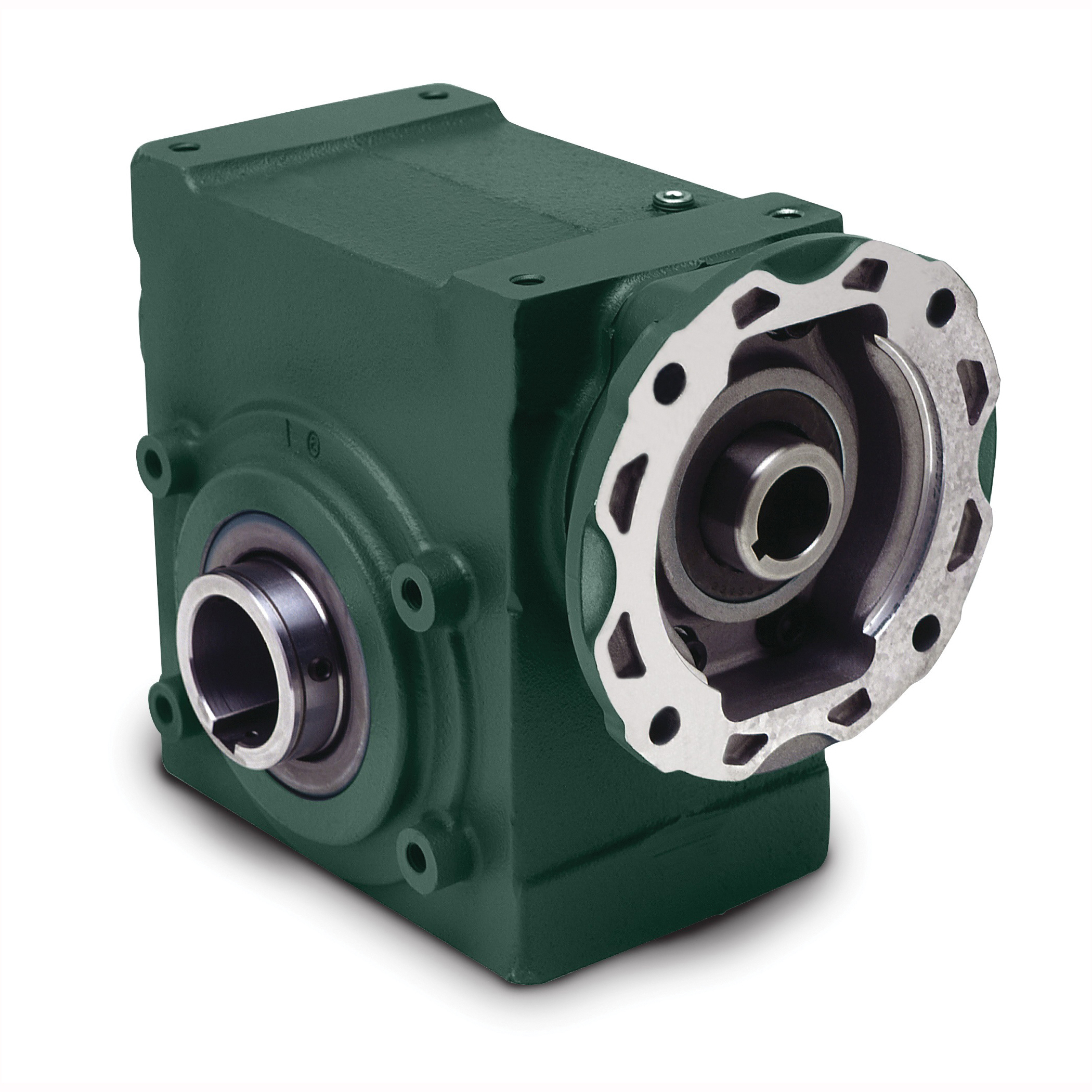

Dodge - 20Q20H14 TIGEAR-2 Reducer
- Brand: Dodge
- PartNumber: 20Q20H14
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.2400 in, 56.896 mm |
| Bore dia output | 1.2500 in, 31.75 mm |
| Bore length | 5.7000 in, 144.78 mm |
| Case size | 20 |
| Center distance (in) | 2 in, Center distance (. |
| Finish | Green |
| Horsepower rating input | 1.3400 hp, 0.999 kW |
| Horsepower rating output | 1.1100 hp, 0.828 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 1.34 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 5.0000 in, 127.0 mm |
| Mounting bolt pattern w. | 2.8800 in, 73.152 mm |
| Nominal ratio | 20 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.25 in |
| Output horse power | 1.11 |
| Output shaft | Hollow |
| Output shaft center to . | 5.0000 in, 127.0 mm |
| Output style | Hollow |
| Overhung load | 1560 lbf, 6939.226 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 796 in/lb, 796.0 in/lb |
| Ratio | 20 to 1 |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 1.9900 hp, 1.484 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 20Q20H14 | 891.12 | 1 | In Stock | | Dodge | | 891.12 @ 1 |
 | MRO Supply | 142467 | 1010.09 | 1 | In Stock | | Dodge | | 1010.09 @ 1 |
 | Purvis | 20Q20H14 | 1093.36 | 1 | In Stock | | Dodge | | 1093.36 @ 1 |
