- mpn26A15HA56
- brandname: Dodge
- manufacturername: Dodge

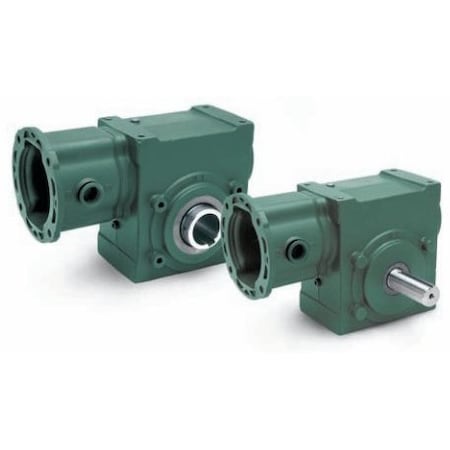

DODGE 26A15HA56 26A15HA56 TIGEAR-2 REDUCER
- Brand: Dodge
- PartNumber: 26A15HA56
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Bore dia output | 1.6880 in, 42.875 mm |
| Bore length | 6.6200 in, 168.148 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 3.6200 hp, 2.699 kW |
| Horsepower rating output | 3.1600 hp, 2.356 kW |
| Housing material | Cast iron |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 3.62 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 15 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.6875 in |
| Output horse power | 3.16 |
| Output shaft | Hollow alternate |
| Output shaft center to . | 8.6100 in, 218.694 mm |
| Output style | Hollow alternate |
| Overhung load | 1610 lbf, 7161.637 N |
| Package Quantity | 1 |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1708 in/lb, 1708.0 in/lb |
| Ratio | 15 to 1 |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 4.1500 hp, 3.095 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G108846262 | 1362.99 | 1 | 1 | | Dodge | | 1362.99 @ 1 |
 | MRO Supply | 783658 | 1443.84 | 1 | In Stock | | Dodge | | 1443.84 @ 1 |
 | Walker Industrial | 26A15HA56 | 1636.09 | 1 | In Stock | 17 | Dodge | | 1636.09 @ 1 |
| factorysupplyoutlet.com | EO26MU | 2032.67 | 1 | In Stock | 25 | DODGE | | 2032.67 @ 1 |
