- mpn26A25H14
- brandname: Dodge
- manufacturername: Dodge

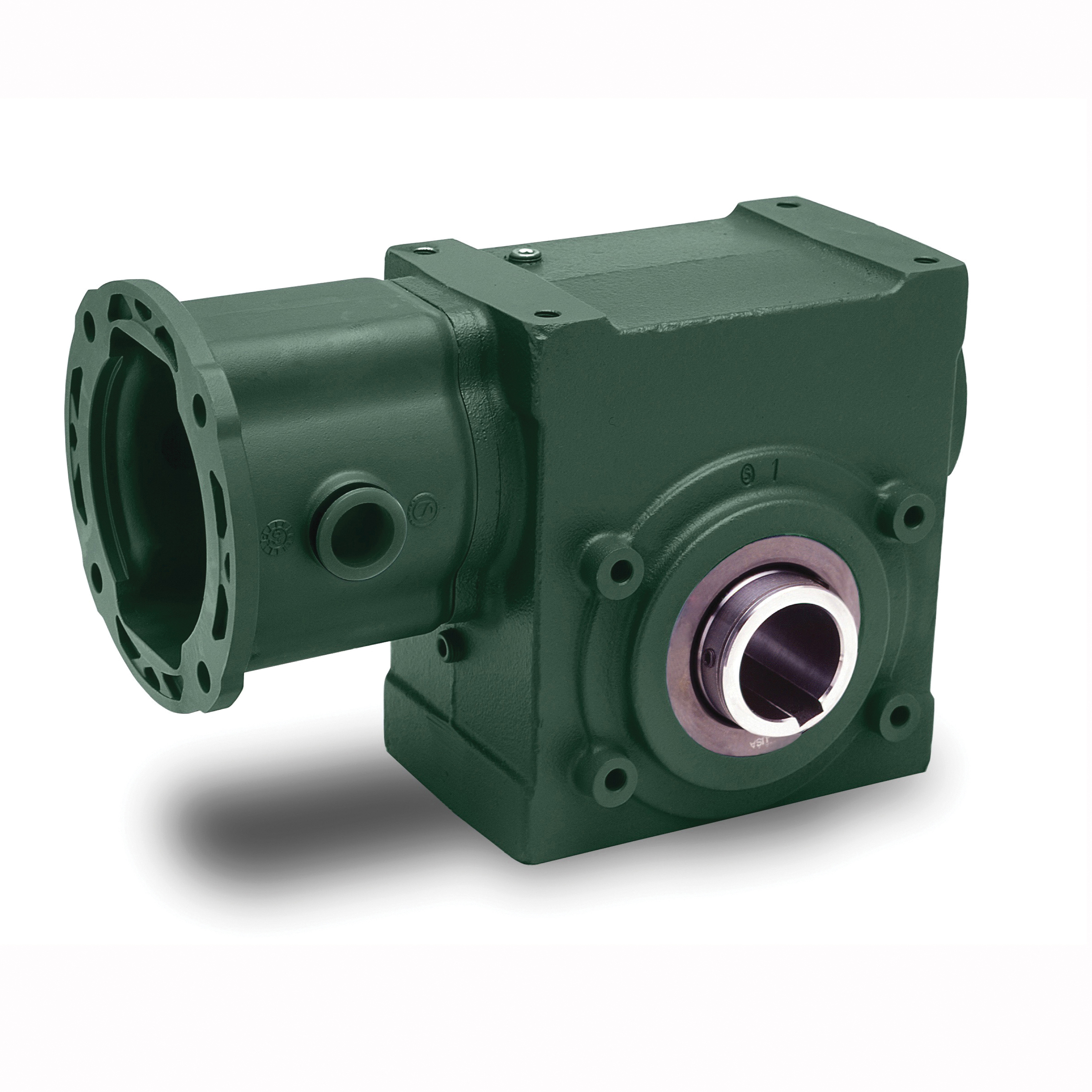

Dodge - 26A25H14 - - Dodge Tigear-2 Reducer
- Brand: Dodge
- PartNumber: 26A25H14
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Bore dia output | 1.4380 in, 36.525 mm |
| Bore length | 6.6200 in, 168.148 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| center distance: | 2.63 in |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 2.2600 hp, 1.685 kW |
| Horsepower rating output | 1.8600 hp, 1.387 kW |
| housing dimensions: | 13.6 x 5.66 x 10 in |
| housing height: | 10.00 in |
| housing length: | 13.60 in |
| Housing material | Cast iron |
| housing material: | Cast iron |
| housing width: | 5.66 in |
| includes: | Separate Reducer |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 2.26 |
| Input style | 3-Piece coupled |
| input type: | C-Face Coupling |
| Lubrication type | PAG, standard temperatu. |
| manufacturer reducer si. | 26 |
| maximum input horsepowe. | 2.260 hp @ 1750 rpm |
| maximum output rpm: | 70.000 @ 1750 rpm input |
| maximum output torque: | 1677 in-lbs @ 1750 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| mounting type: | No Base |
| nema / iec frame size: | 140TC |
| Nominal ratio | 25 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.4375 in |
| output direction: | Right Hand |
| Output horse power | 1.86 |
| Output shaft | Hollow |
| Output shaft center to . | 8.6100 in, 218.694 mm |
| output size: | 1.4400 in |
| Output style | Hollow |
| output type: | Hollow bore |
| Overhung load | 1610 lbf, 7161.637 N |
| overhung load capacity: | 1610 lb |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1677 in/lb, 1677.0 in/lb |
| Ratio | 25 to 1 |
| ratio: | 25:1 |
| reduction: | Single |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 3.0000 hp, 2.237 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 144074 | 1504.85 | 1 | In Stock | 17 | Dodge | | 1504.85 @ 1 |
 | MRO Supply | 144074 | 1636.09 | 1 | In Stock | | Dodge | | 1636.09 @ 1 |
 | motionindustries.com | 02455185 | 1712.45 | 1 | In Stock | | Dodge | | 1712.45 @ 1 |
 | Purvis | 26A25H14 | 1771.52 | 1 | In Stock | | Dodge | | 1771.52 @ 1 |
 | Zoro | G001703945 | 1977.87 | 1 | In Stock | 20 | Dodge | | 1977.87 @ 1 |
| factorysupplyoutlet.com | UK60IQ | 2216.82 | 1 | In Stock | 25 | DODGE | | 2216.82 @ 1 |
