- mpn26AZ05LR56WP
- brandname: Dodge
- manufacturername: Dodge

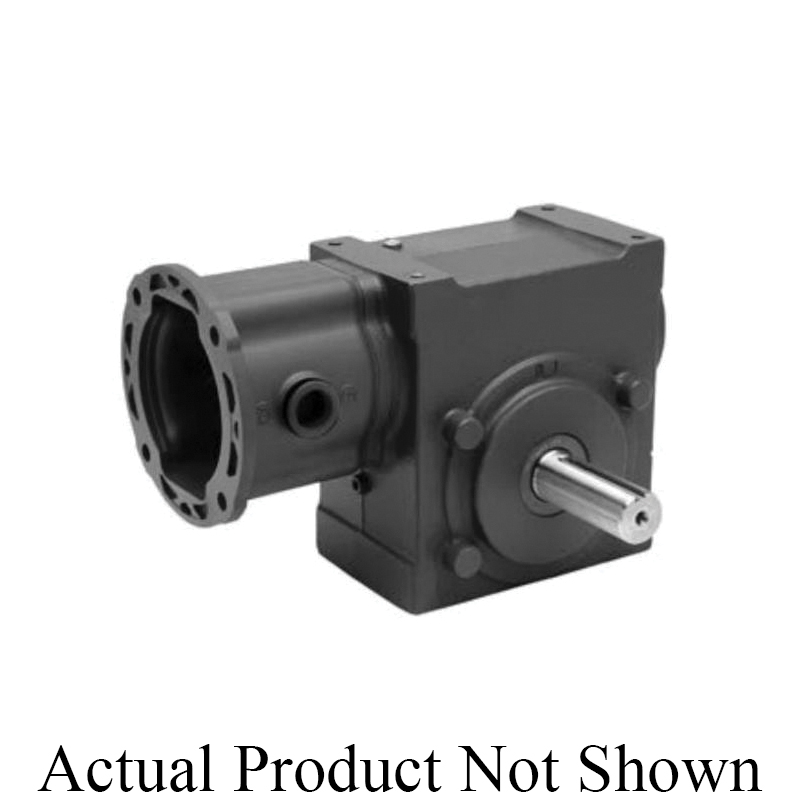

DODGE 26AZ05LR56WP TIGEAR-2 E-Z KLEEN REDUCER-WHITE
- Brand: Dodge
- PartNumber: 26AZ05LR56WP
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Center to end of shaft . | 5.6300 in, 143.002 mm |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 7.3700 hp, 5.496 kW |
| Horsepower rating output | 6.9300 hp, 5.168 kW |
| Housing material | Cast iron |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 7.37 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 5 |
| Output | Double solid output sha. |
| Output bore/shaft diame. | 1.25 in |
| Output horse power | 6.93 |
| Output shaft center to . | 8.6100 in, 218.694 mm |
| Output style | Left, right |
| Overhung load | 1330 lbf, 5916.135 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 1247 in/lb, 1247.0 in/lb |
| Ratio | 5 to 1 |
| Seal type | Two-piece harsh duty |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | Yes |
| Thermal horsepower rati. | 8.7900 hp, 6.555 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 26AZ05LR56WP | 1853.31 | 1 | In Stock | 10 | Dodge | | 1853.31 @ 1 |
 | MRO Supply | 152098 | 2100.23 | 1 | In Stock | | Dodge | | 2100.23 @ 1 |
 | Purvis | 26AZ05LR56WP | 2273.92 | 1 | In Stock | | Dodge | | 2273.92 @ 1 |
| factorysupplyoutlet.com | XY79MV | 2628.07 | 1 | In Stock | 25 | DODGE | | 2628.07 @ 1 |
