mpn:
brand:
manufacturer:
MPN:
Description:

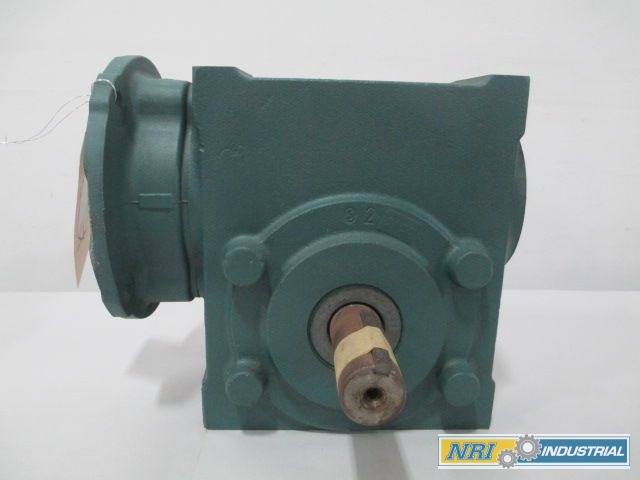

26Q10R14 CENTER DISTANCE: 2.6 RATIO: 10:1 OUTPUT RPM: 175
Weight:
65.0
Weight:
65.0 LB
Preferred Price:
845.67
Price:
845.67
Min Simple Price:
477.78
Absolute Min Price:
678.44
Min Price:
678.44
Dimensions:
[10.0, 9.0, 9.0]
qty:
21
simpleSku:
c4Mzc3:::26Q10R14
sku:
c4Mzc3::2C:26Q10R14@y0
condition:
11
seller:
NRI Industrial
amzMan:
dodge
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Base to output center height | 2.8700 in, 72.898 mm |
| Case size, manufacturer reducer size: | 26 |
| Center distance (in) | 2.6 in, Center distance (in):2.6300 in, 66.802 mm |
| center distance: | 2.63 in |
| Center to end of shaft distance | 5.6300 in, 143.002 mm |
| Finish, Paint/coating | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.8300 hp, 3.602 kW |
| Horsepower rating output | 4.3700 hp, 3.259 kW |
| housing dimensions: | 10.6 x 5.77 x 10 in |
| housing height: | 10.00 in |
| housing length: | 10.60 in |
| Housing material, housing material: | Cast iron |
| housing width: | 5.77 in |
| Input | 140TC flange |
| Input flange, nema / iec frame size: | 140TC |
| Input HP | 4.83 |
| Input style | Quill |
| input type: | C-Face Quill |
| Lubrication type | PAG, standard temperature |
| Material | Class 30 grey iron |
| Max RPM | 175 rpm |
| maximum input horsepower: | 4.830 hp @ 1750 rpm |
| maximum output rpm: | 175.000 @ 1750 rpm input |
| maximum output torque: | 1576 in-lbs @ 1750 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern length | 6.3800 in, 162.052 mm |
| Mounting bolt pattern width | 3.3800 in, 85.852 mm |
| mounting type: | No Base |
| Nominal ratio | 10 |
| Output | Right side solid output shaft |
| Output bore/shaft diameter | 1.25 in |
| output direction: | Right Hand |
| Output horse power | 4.37 |
| Output shaft | Right (solid B) |
| Output shaft center to input motor mounting face distance | 5.4900 in, 139.446 mm |
| output size: | 1.1250 in |
| Output style | Right |
| output type: | Solid Shaft |
| Overhung load | 1610 lbf, 7161.637 N |
| overhung load capacity: | 1610 lb |
| Paint type | Standard |
| Rated torque output | 1576 in/lb, 1576.0 in/lb |
| Ratio | 10 to 1 |
| ratio: | 10:1 |
| reduction: | Single |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | No |
| Thermal horsepower rating | 5.6100 hp, 4.183 kW |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | NRI Industrial | D249043 | 477.78 | 477.78 | 1 | In Stock | DODGE | 477.78 @ Qty: 1+ | ||
 | Walker Industrial | 142052 | 1038.09 | 1038.09 | 1 | In Stock | 17 | Dodge | 1038.09 @ Qty: 1+ | |
 | MRO Supply | 142052 | 1093.12 | 1093.12 | 1 | In Stock | Dodge | 1093.12 @ Qty: 1+ | ||
 | motionindustries.com | 02455252 | 1143.86 | 1143.86 | 1 | In Stock | Dodge | 1143.86 @ Qty: 1+ | ||
 | Purvis | 26Q10R14 | 1183.32 | 1183.32 | 1 | In Stock | Dodge | 1183.32 @ Qty: 1+ | ||
| AmazonTP | B081B4Y52C | 1285.2 | 1285.2 | 1 | In Stock | 3 | Dodge | 1285.2 @ Qty: 1+ | ||
| kirbyrisk.com | 2476634 | 1303.07 | 1303.07 | 1 | In Stock | Dodge | 1303.07 @ Qty: 1+ | |||
| factorysupplyoutlet.com | CC71MY | 1377.24 | 1377.24 | 1 | In Stock | 25 | DODGE | 1377.24 @ Qty: 1+ | ||
| cbtcompany.com | 26Q10R14 | 1377.88 | 1377.88 | 1 | In Stock | Dodge | 1377.88 @ Qty: 1+ |
