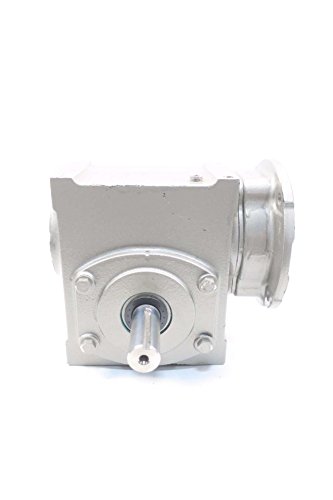

26QZ40L56 TIGEAR-2 E-Z KLEEN REDUCER
Weight:
47.1
Weight:
47.1 LB
Preferred Price:
624.13
Price:
624.13
Min Simple Price:
352.62
Absolute Min Price:
500.72
Min Price:
500.72
Dimensions:
[10.0, 9.0, 9.0]
qty:
21
simpleSku:
c4Mzc3:::26QZ40L56
sku:
c4Mzc3::P3:26QZ40L56@y0
condition:
11
seller:
NRI Industrial
amzMan:
dodge
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Base to output center height | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance (in):2.6300 in, 66.802 mm |
| Center to end of shaft distance | 5.6300 in, 143.002 mm |
| Finish | Silver-gray epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 1.5500 hp, 1.156 kW |
| Horsepower rating output | 1.1700 hp, 0.872 kW |
| Housing material | Cast iron |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 1.55 |
| Input style | Quill |
| Lubrication type | PAG, standard temperature |
| Material | Class 30 grey iron |
| Max RPM | 44 rpm |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern length | 6.3800 in, 162.052 mm |
| Mounting bolt pattern width | 3.3800 in, 85.852 mm |
| Nominal ratio | 40 |
| Output | Left side solid output shaft |
| Output bore/shaft diameter | 1.25 in |
| Output horse power | 1.17 |
| Output shaft | Left (solid A) |
| Output shaft center to input motor mounting face distance | 5.4900 in, 139.446 mm |
| Output style | Left |
| Overhung load | 1610 lbf, 7161.637 N |
| Paint type | Stainless epoxy |
| Paint/coating | Green |
| Rated torque output | 1685 in/lb, 1685.0 in/lb |
| Ratio | 40 to 1 |
| Seal type | Two-piece harsh duty |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | Yes |
| Thermal horsepower rating | 2.1400 hp, 1.596 kW |
