mpn:
brand:
manufacturer:
MPN:
Description:

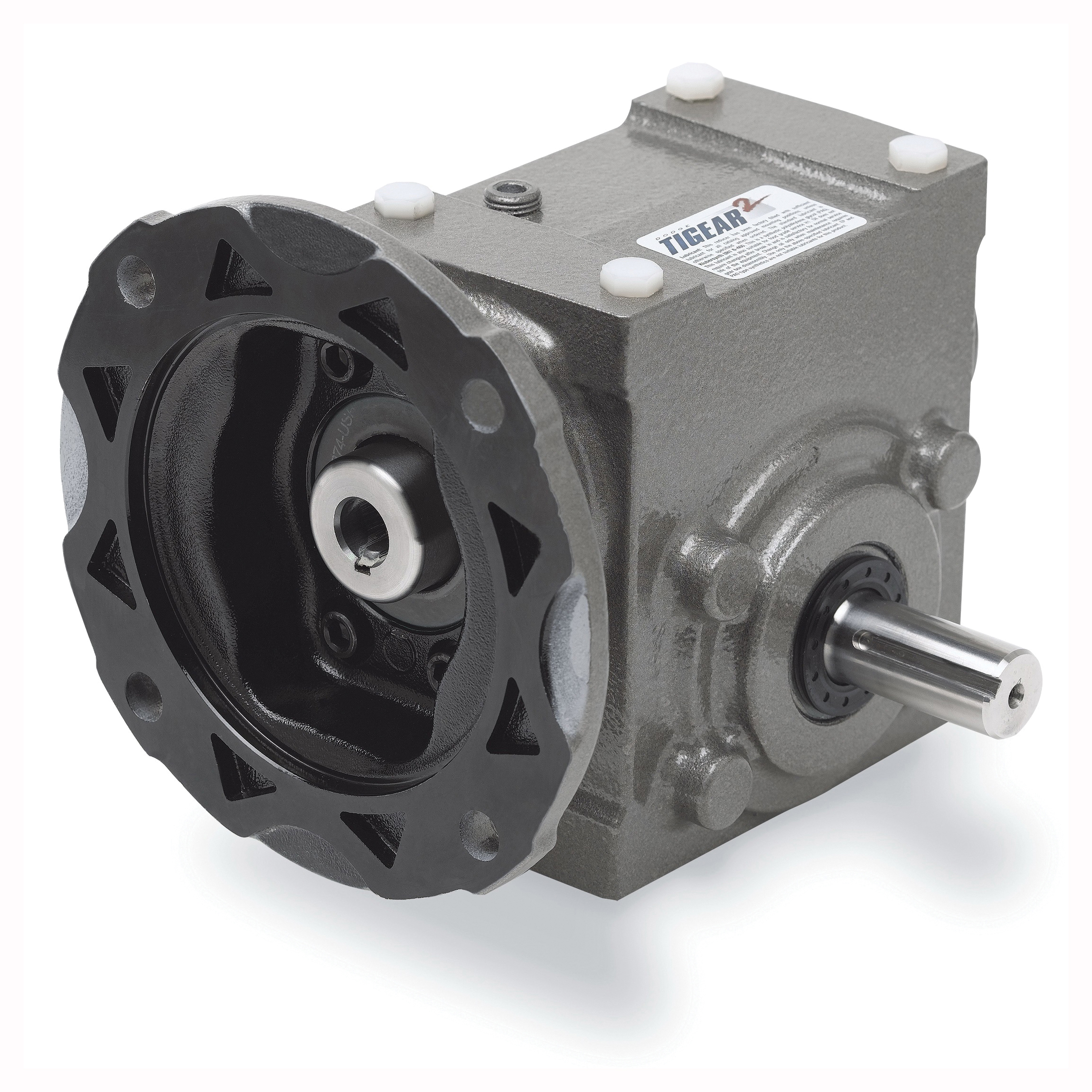

30QZ50R14 TIGEAR-2 E-Z KLEEN REDUCER
Preferred Price:
3529.18
Price:
3529.18
Min Simple Price:
1993.89
Absolute Min Price:
2831.32
Min Price:
2831.32
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
c4Mzc3:::30QZ50R14
sku:
c4Mzc3::38:30QZ50R14@y0
condition:
11
seller:
MRO Supply
amzMan:
dodge
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base to output center height | 3.2500 in, 82.55 mm |
| Case size | 30 |
| Center distance (in) | 3 in, Center distance (in):3.0000 in, 76.2 mm |
| Center to end of shaft distance | 6.7500 in, 171.45 mm |
| Finish | Silver-gray epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 1.7500 hp, 1.305 kW |
| Horsepower rating output | 1.2500 hp, 0.932 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 1.75 |
| Input style | Quill |
| Lubrication type | PAG, standard temperature |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern length | 7.0000 in, 177.8 mm |
| Mounting bolt pattern width | 4.0000 in, 101.6 mm |
| Nominal ratio | 50 |
| Output | Right side solid output shaft |
| Output bore/shaft diameter | 1.375 in |
| Output horse power | 1.25 |
| Output shaft | Right (solid B) |
| Output shaft center to input motor mounting face distance | 6.1100 in, 155.194 mm |
| Output style | Right |
| Overhung load | 2300 lbf, 10230.91 N |
| Paint type | Stainless epoxy |
| Paint/coating | Green |
| Rated torque output | 2257 in/lb, 2257.0 in/lb |
| Ratio | 50 to 1 |
| Seal type | Two-piece harsh duty |
| Shaft diameter output | 1.3750 in, 34.925 mm |
| Shaft length output | 3.2000 in, 81.28 mm |
| Suitable for washdown | Yes |
| Thermal horsepower rating | 2.3400 hp, 1.745 kW |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | MRO Supply | 152289 | 1993.89 | 1993.89 | 1 | In Stock | Dodge | 1993.89 @ Qty: 1+ | ||
 | Walker Industrial | 30QZ50R14 | 1993.89 | 1993.89 | 1 | In Stock | 17 | Dodge | 1993.89 @ Qty: 1+ | |
 | Purvis | 30QZ50R14 | 2159.04 | 2159.04 | 1 | In Stock | Dodge | 2159.04 @ Qty: 1+ | ||
| motionindustries.com | 02768653 | 2725.79 | 2725.79 | 1 | In Stock | Dodge | 2725.79 @ Qty: 1+ |
