- mpn40Q40H14
- brandname: Dodge
- manufacturername: Dodge

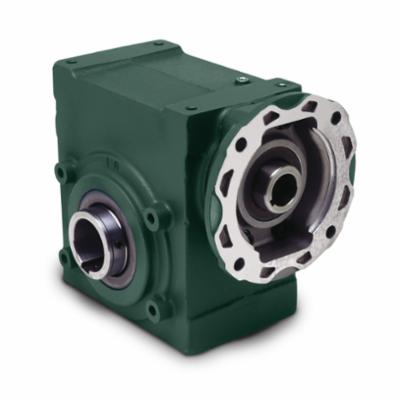

DODGE 40Q40H14 40Q40H14 TIGEAR-2 REDUCER
- Brand: Dodge
- PartNumber: 40Q40H14
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Base to output center h. | 4.4400 in, 112.776 mm |
| Bore dia output | 2.1880 in, 55.575 mm |
| Bore length | 9.8200 in, 249.428 mm |
| Case size | 40 |
| Center distance (in) | 4 in, Center distance (. |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.4300 hp, 3.303 kW |
| Horsepower rating output | 3.3300 hp, 2.483 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 4.43 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 44 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 8.5000 in, 215.9 mm |
| Mounting bolt pattern w. | 5.0000 in, 127.0 mm |
| Nominal ratio | 40 |
| Output | Hollow bore |
| Output bore/shaft diame. | 2.1875 in |
| Output horse power | 3.33 |
| Output shaft | Hollow |
| Output shaft center to . | 8.3700 in, 212.598 mm |
| Output style | Hollow |
| Overhung load | 4300 lbf, 19127.353 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 4800 in/lb, 4800.0 in/lb |
| Ratio | 40 to 1 |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 4.5000 hp, 3.356 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 40Q40H14 | 3219.31 | 1 | In Stock | 10 | Dodge | | 3219.31 @ 1 |
 | MRO Supply | 783456 | 3648.51 | 1 | In Stock | | Dodge | | 3648.51 @ 1 |
 | Purvis | 40Q40H14 | 3949.94 | 1 | In Stock | | Dodge | | 3949.94 @ 1 |
| factorysupplyoutlet.com | TT80QX | 4565.15 | 1 | In Stock | 25 | DODGE | | 4565.15 @ 1 |
