- mpn40Q40H18WP
- brandname: Dodge
- manufacturername: Dodge

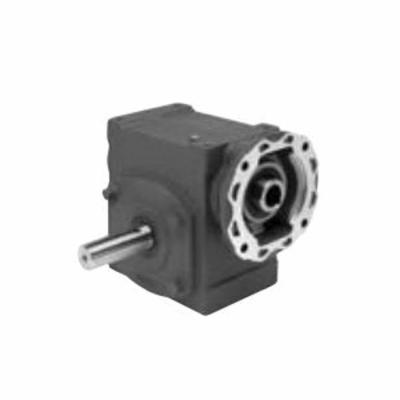

Dodge 40Q40H18WP CENTER DISTANCE: 4 RATIO: 40:1 OUTPUT RPM:
- Brand: Dodge
- PartNumber: 40Q40H18WP
Attributes
| Key | Value |
|---|
| Base to output center h. | 4.4400 in, 112.776 mm |
| Bore dia output | 2.1880 in, 55.575 mm |
| Bore length | 9.8200 in, 249.428 mm |
| Case size | 40 |
| Center distance (in) | 4 in, Center distance (. |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.4300 hp, 3.303 kW |
| Horsepower rating output | 3.3300 hp, 2.483 kW |
| Housing material | Cast iron |
| Input | 180TC flange |
| Input flange | 180TC |
| Input HP | 4.43 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 43.7 RPM |
| Motor compatibility | NEMA motor, 180TC frame |
| Mounting bolt pattern l. | 8.5000 in, 215.9 mm |
| Mounting bolt pattern w. | 5.0000 in, 127.0 mm |
| Nominal ratio | 40 |
| Output | Hollow bore |
| Output bore/shaft diame. | 2.1875 in |
| Output horse power | 3.33 |
| Output shaft center to . | 8.8300 in, 224.282 mm |
| Output style | Hollow |
| Overhung load | 4300 lbf, 19127.353 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 4800 in/lb, 4800.0 in/lb |
| Ratio | 40 to 1 |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 4.5000 hp, 3.356 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 151559 | 3753.99 | 1 | In Stock | | Dodge | | 3753.99 @ 1 |
 | Walker Industrial | 40Q40H18WP | 4254.21 | 1 | In Stock | 17 | Dodge | | 4254.21 @ 1 |
 | Purvis | 40Q40H18WP | 4605.96 | 1 | In Stock | | Dodge | | 4605.96 @ 1 |
| factorysupplyoutlet.com | KT17WD | 5323.36 | 1 | In Stock | 25 | DODGE | | 5323.36 @ 1 |
