Dodge F4B-SXV-100

mpnF4B-SXV-100
brandname: Dodge
manufacturername: Dodge

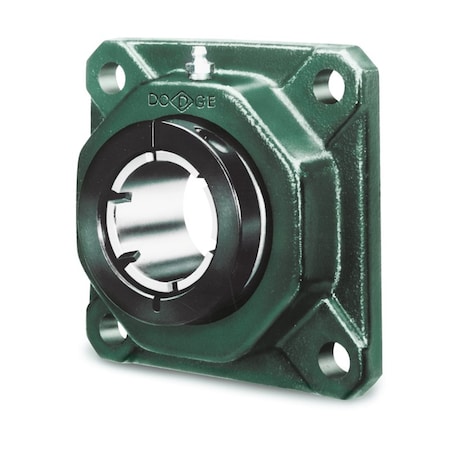

DODGE F4BSXV100 MOUNTED UNIT

DODGE F4BSXV100 MOUNTED UNIT

zoom

Brand: Dodge
PartNumber: F4B-SXV-100
PackageQuantity: 1
Manufacturer: Dodge
Label: Dodge

Attributes

Key	Value
Application	General Purpose
Ball bearing series	205 series
Bearing type	Ball, ball
Bolt Diameter	0.4375 in
Bolt to bolt max	2.7500 in, 69.85 mm
Bolt to bolt min	2.7500 in, 69.85 mm
Bore	1 in
Bore length	1.2200 in, 30.988 mm
Country of Origin (subj.	United States
Duty	Intermediate duty
Expansion	No
Expansion capability	Non-expansion (fixed)
Finish	Powder coated
Greasable	Yes
High temp	No
Housing	Cast iron
Housing construction	Solid
Housing material	Cast iron
Housing option	Cast iron
Housing type	Four-bolt flange
I.D.	2 1/5 in
Insert material	Steel
Insert option	Bearing steel
Insert type	Ball Bearing
Locking	Eccentric locking
Lubrication type	Grease
Max RPM	7500 rpm
Max Speed	4500 rpm
Relubrication	Yes
Rolling element	Standard duty ball
Seal option	DualGuard seals with fl.
Sensor ready	Adapter required
Shaft attachment	Eccentric collar
Shaft diameter	1.0000 in
Standoff housing	No
Static load capacity	1769 lbf, 7868.904 N
Suitable for high tempe.	No
Suitable for washdown	No
Type	4-bolt flange

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	125232	45.44	1	In Stock		Dodge		45.44 @ 1
	Zoro	G300417178	48.24	1	In Stock	12	Dodge		48.24 @ 1
