Dodge FC-S2-115R

B006MIRLOM

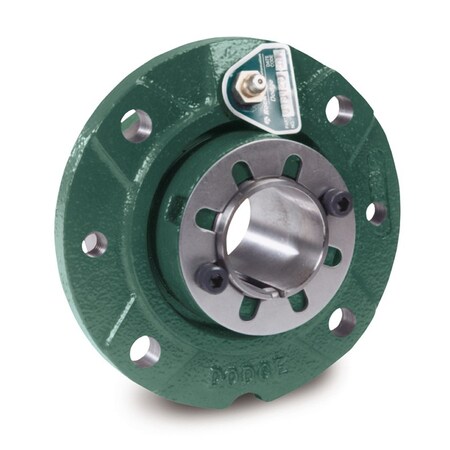

Dodge FC-S2-115R Piloted Flange Unit, 4 Bolt Holes, Heavy-Duty, Relubricatable, Non-Expansion, Cast Iron, Springlok Collar, Steel Insert, Inch, 1-15/16" Bore Diameter

Dodge FC-S2-115R Piloted Flange Unit, 4 Bolt Holes, Heavy-Duty, Relubricatable, Non-Expansion, Cast Iron, Springlok Collar, Steel Insert, Inch, 1-15/16" Bore Diameterzoom

Attributes

Key Value
Bearing componentMounted Bearing
Bearing typeSpherical roller, spher.
Bolt circle5.3800 in, 136.652 mm
Bolt Diameter0.4375 in
Bolt Spacing3.797 Inch | 96.444 Mil.
Bore1.938 Inch | 49.225 Mil.
Bore length2.8400 in, 72.136 mm
BrandDODGE
Cartridge Pilot Depth0.875 Inch | 22.225 Mil.
Cartridge Pilot Diameter4.5 Inch | 114.3 Millim.
CategoryFlange Block Bearings
EAN0782475306978
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
Global Part Number GPN550835
GreasableYes
Harmonized Tariff Code8483.20.40.80
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing Style4 Bolt Round Flange Car.
Housing typePiloted flange
Inch - MetricInch
Insert materialSteel
Insert Part NumberINS-S2-115R
Length Thru Bore2.844 Inch | 72.238 Mil.
LockingSet screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
Max Speed2200 RPM
Mounting Bolts7/16 Inch
Mounting MethodConcentric Collar
Nominal Bolt Circle Dia.5.4 Inch | 138 Millimet.
Number of Mounting Holes4
Other FeaturesDouble Row | Has Flinge.
Pilot ConfigurationWith Pilot
Pilot depth0.8800 in, 22.352 mm
Pilot diameter4.5000 in, 114.3 mm
price$ 442.97 / each
RelubricatableYes
Rolling elementSpherical roller
SealsTriple Lip Contact
Sensor readyYes
Shaft attachmentSetscrew
Shaft diameter1.9375 in
Static load capacity24000 lbf, 106757.319 N
titleFC-S2-115R
UNSPSC31171501
Weight / kgm4.095
Weight / LBS9.02

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingFC-S2-115R376.521In StockDODGE9.009376.52 @ 1
thumbzoomMRO Supply128869419.761In StockDodge419.76 @ 1
thumbzoomZoroG2488574596.991In Stock20Dodge596.99 @ 1
