Dodge P2B-SC-110L

B07PT38T8J

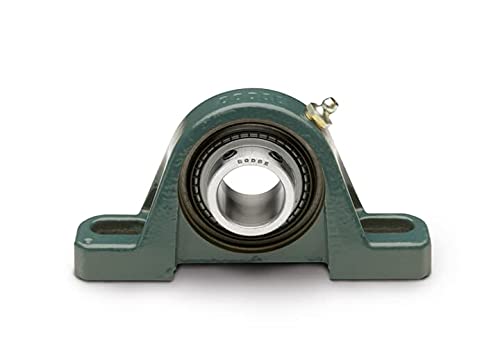

DODGE - P2B-SC-110L, Two-Bolt Pillow Block, Non-Expansion, Cast Iron, 1.625 in Bore Dia.

DODGE - P2B-SC-110L, Two-Bolt Pillow Block, Non-Expansion, Cast Iron, 1.625 in Bore Dia.zoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series209 series
Base to center height2.1300 in, 54.102 mm
Base to Center Height2.125 Inch | 53.98 Mill.
Bearing typeBall, ball
Bolt Diameter0.5000 in
Bolt Spacing Maximum6.188 Inch | 157.175Mil.
Bolt Spacing Minimum5.5 Inch | 139.7Millime.
Bolt to bolt max6.1900 in, 157.226 mm
Bolt to bolt min5.5000 in, 139.7 mm
Bore1 5/8 in
Bore length1.9400 in, 49.276 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522045
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 5/8 in
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-110L
Insert typeBall Bearing
Length Thru Bore1.719 Inch | 43.663 Mil.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max Speed300 RPM
Mounting Bolts1/2 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .5.8 Inch | 146.5 Millim.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 122.74 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft diameter1.6250 in
Standoff housingNo
Static load capacity4906 lbf, 21822.975 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-20,TS-250
titleP2B-SC-110L
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm2.315
Weight / LBS6.6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SC-110L104.331In StockDODGE5.093104.33 @ 1
thumbzoomMRO Supply123511119.491In StockDodge119.49 @ 1
thumbzoomapexindustrialautomation.comP2B-SC-110L121.111In StockDodge121.11 @ 1
