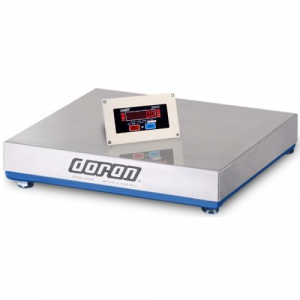

Doran DBS5250M
Doranzoom
brand:
manufacturer:
Description:
<p><strong>DBS5250M, Recess Mount Baggage Scale - Main Display, 250 x 0.5 with NTEP Certificate </strong> </p> <p><strong>Features: </strong> </p> <p><strong>Low-Profile Baggage Scale: </strong> </p> <ul><li>The Original Low-Profile Base Design </li> <li>Reliable, Heavy Duty, Field-Proven Design </li> <li>Front Panel Calibration </li> <li>Modular Design for Easy Field Service </li> <li>Base is 1.64" High </li> </ul> <p><strong>Recess Mount Baggage Scale: </strong> </p> <ul><li>Straight-Sided Platter for Recess Mount in Bagwell </li> <li>Reliable, Heavy-Duty Field-Proven Design </li> <li>Front Panel Calibration </li> <li>Modular Design for Fast and Easy Field Service </li> </ul> <p><strong>Outstanding Durability & Reliability </strong> </p> <p>A side load and vertical load protection system using rubber shock mounts prevents load cell sensor damage from impact and massive overloading as baggage is loaded onto the scale platform. An advanced electronic design prevents damage caused by electrostatic discharge present in dry airport environments. </p> <p><strong>Quick and Trouble-Free Installation </strong> </p> <p>The modular design of the Doran Baggage Scale makes installation a snap! All of the scale's electronics are contained in the panel mount main display - no additional electronics control box to install inside the counter. Simply install the main and remote displays into the counter cutouts and connect the foolproof keyed and locking connectors to the base, and the scale is ready to use. </p>

Attributes

Key ^Value
Base Size24" x 24"
Capacity (kg x g)113 x 0.2
Capacity (lb)250 x 0.5
CertificationsNTEP
ConstructionPainted Steel and Stainless Steel
ControlsUnits; Zero
DimensionsDisplay Panel Cutout Size: 6.5" W x 3.3" H x 1.75" D; Scale base - 24" x 24" x 5.25" High
Display6 Digit, Red LED, 0.56? High
Indicatorskg; lb; Motion; Zero
OutputBi-directional RS-232
Power115 VAC; Transformer, UL/ULc
Resolution Range0.5lb
Unitslb; kg
