| ANSI Code | SDGX-19C05-E |
| ANSI Number | SDGX-19C05-E-DUP25UT |
| Chip-Breaker | No |
| Coating | PVD-TiN/TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius | 0.0780 in |
| Country of Origin (subject to change) | United States |
| Cutting Application | Milling |
| Cutting Direction | Neutral |
| Cutting Edge Length, Inscribed Circle | 3/4 in |
| Finish - Machining | TiAlN+TiN |
| For Toolholder | REC15-200-CN4-075, REC15-200-CN4-100, REC15-200-CN4-R8, REC15A-300-CN4-100, REC15A-400-CN4-150 |
| For Use With | CNMG Recycle Milling Cutter |
| Grade, Manufacturer Grade | DUP25UT |
| Insert Application | Medium |
| Insert Holding Type, Mounting Style | Torx Screw |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Square |
| Insert Style | SDGX |
| Insert Thickness | 0.188" |
| ISO Number | SDGX-1904C20-E-DUP25UT |

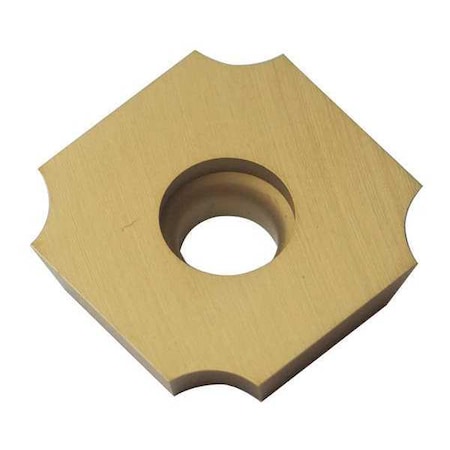

| Item | Square Milling Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.2200 in |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.078" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | K, M, N, P, S |
| Rake | 15 Degrees |
| Thickness | 0.188 in |
| Workpiece Compatibility | Cast Iron (K) |
