Dormer A2102.5X6.3

mpnA2102.5X6.3
brandname: Dormer
manufacturername: Dormer

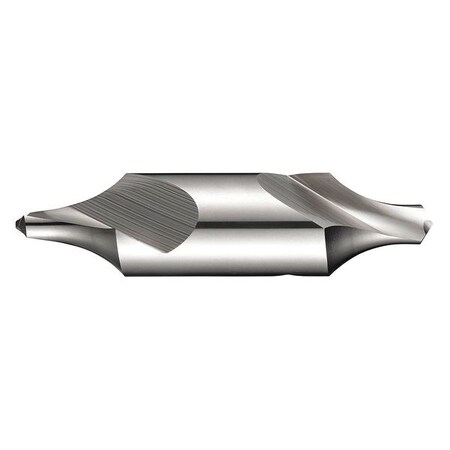

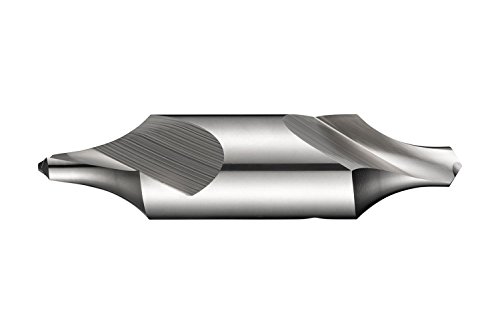

Dormer A2102.5X6.3 Centre Drill, Radius Form, Bright Coating, High Speed Steel, 2.5 mm Head Diameter, 45 mm Full Length

Dormer A2102.5X6.3 Centre Drill, Radius Form, Bright Coating, High Speed Steel, 2.5 mm Head Diameter, 45 mm Full Length

zoom

Brand: Dormer
PartNumber: A2102.5X6.3
Model: 0031100
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dormer Pramet
Label: Dormer Pramet

Attributes

Key	Value
Basic Standard	DIN 333R
Connection diameter - m.	6.3
Coolant Through	External Cooling Supply
Country of Origin (subj.	Germany
Cutting diameter - inch.	0.0984
Cutting diameter - mill.	2.5
Drill Bit Dimension Type	Metric
Drill Bit Finish	Bright
Drill Bit Material	HSS
Drill Bit Point Angle	118 Degrees
Drill Bit Size	2.50
Drill Style	Short
EDP number	31100
Flute Type	DIN 333R
Item	HSS Bright Center Drill.
Material	HSS
Material application	K - Cast iron, P - Stee.
MID number	5969369
Number of Flutes	2
Number of Pieces	1
Ordering code ANSI	A2102.5X6.3
Overall Length	45
Point Angle (SIG)	118
Shank Shape	Straight
Usable length (ULDR)	1

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6072120	8.65	9	5		Dormer Pramet		8.65 @ 9
	Zoro	G8962375	9.97	1	5		Dormer	0.02	9.97 @ 5
