mpn:
brand:
name: Dormer
manufacturer:
MPN:
Weight:
6.27
Weight:
6.27 LB
Preferred Price:
1499.26
Price:
1499.26
Min Simple Price:
847.04
Absolute Min Price:
1202.79
Min Price:
1202.79
Dimensions:
[23.0, 2.0, 2.0]
qty:
21
simpleSku:
jc4MDE:::A3451.1/2
sku:
jc4MDE::U4:A3451.1/2@y0
condition:
11
seller:
Zoro
amzMan:
dormer pramet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Basic Standard, Flute Type | DIN 1870 (1) |
| Coating, Drill Bit Finish, Surface treatement | Steam Tempered |
| Connection (shank) description, Shank Shape | Morse Taper Shank |
| Connection size code machine side (CZC MS) | MK 4 |
| Coolant Through | External Cooling Supply |
| Country of Origin (subject to change) | France |
| Cutting diameter - fractional inch (DC), Drill Bit Size | 1.1/2 |
| Cutting diameter - inch (DC) | 1.5 |
| Cutting diameter - millimeter (DC) | 38.1 |
| Cutting diameter tolerance class (TCDC) | h8 |
| Drill Bit Dimension Type | Inch |
| Drill Bit Material, Material | HSS |
| Drill Bit Point Angle | 118 Degrees |
| Drill Length, Drill Style | XL |
| EDP number | 419540 |
| Hand (Cutting direction) | Right |

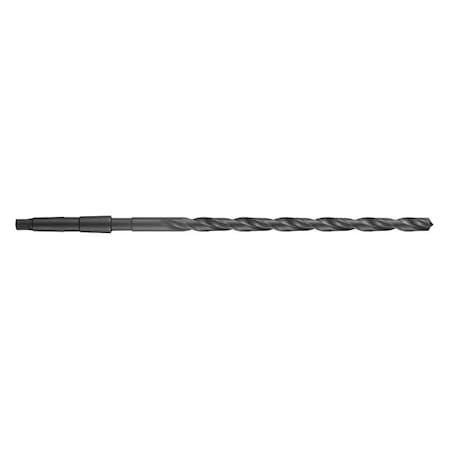

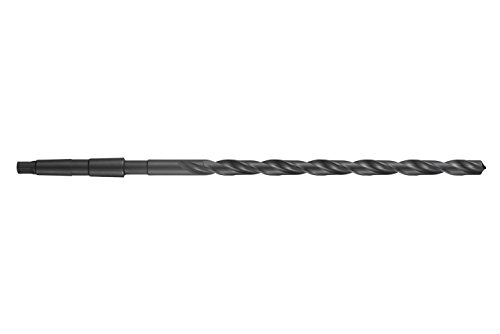

| Item | HSS Steam Oxide Extra Length Drill,1-1/2 |
| Length chip flute - millimeter (LCF) | 360 |
| Material application | P - Steel and cast steel |
| MID number | 5968988 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Ordering code ANSI | A3451.1/2 |
| Overall Length, Overall length - millimeter (OAL) | 555 |
| Point Angle (SIG) | 118 |
| Point Type, Spiral form | Standard Spiral |
| Usable length (ULDR) | 10 |
