Dormer A90039/64

B0051QI4T2

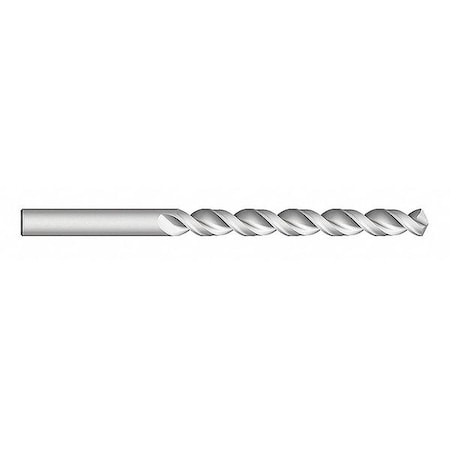

Dormer A90039/64 PFX Jobber Length Drill, Bright, High Speed Steel Cobalt, 15.48 mm Head Diameter, 132 mm Flute Length, 181 mm Full Length

Dormer A90039/64 PFX Jobber Length Drill, Bright, High Speed Steel Cobalt, 15.48 mm Head Diameter, 132 mm Flute Length, 181 mm Full Lengthzoom

Attributes

Key Value
Basic StandardDIN/ANSI
CoatingBright
Connection (shank) desc.Cylindrical shank
Connection diameter - m.15.48
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.France
Cutting diameter - frac.39/64
Cutting diameter - inch.0.6094
Cutting diameter - mill.15.48
Cutting DirectionRight Hand
Decimal Equivalent0.6094
Depth x Dia. Ratio6xD
Depth:Dia. Ratio6xD
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBright
Drill Bit GroupingJobber Length Drill Bit.
Drill Bit MaterialCobalt Steel, Cobalt
Drill Bit Point Angle130 Degrees, 130 Degre.
Drill Bit Size39/64 in, 39/64"
Drill LengthJobber
Drill StyleJobber
EDP number634370
FinishBright (Uncoated)
Flute Length132.00 mm
Flute TypeDIN/ANSI
Hand (Cutting direction)Right
ItemJobber Drill Bit
Length chip flute - mil.132
List NumberA900
MaterialHSS-E, Cobalt
Material applicationM - Stainless steel, N .
Maximum Drilling Depth132.00 mm
Measurement SystemFractional Inch
MID number5971113
Number of Flutes2
Number of Pieces1
Ordering code ANSIA90039/64
Overall Length181.00 mm
Overall length - millim.181
Point Angle (SIG)130
Point TypeGeneral Purpose
Shank Dia.39/64 in
Shank Length49.00 mm
Shank ShapeStraight
Spiral formQuick Spiral
StandardsDIN ANSI
Surface treatementOriginal surface
Usable length (ULDR)6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG955217385.891In StockDormer0.0185.89 @ 1
thumbzoomMRO Supply6073247106.531In StockDormer Pramet106.53 @ 1
Grainger38FN85111.051In StockDORMER0.009111.05 @ 1
