Dormer A90131/64

B01M30EXG5

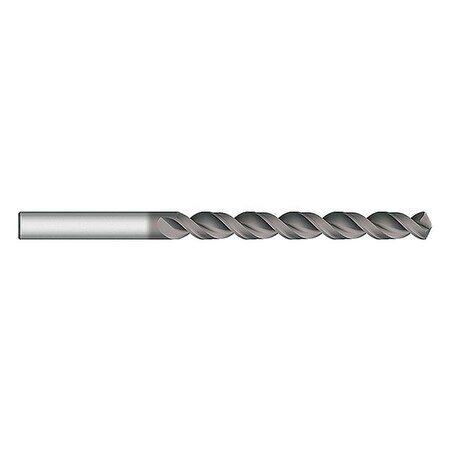

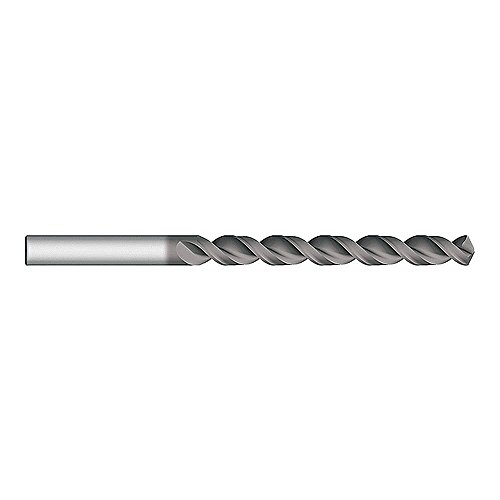

Dormer - A90131/64 - Jobber Drill Bit, Size 31/64, Cobalt Steel, AlCrN Coated, List Number A901

Dormer - A90131/64 - Jobber Drill Bit, Size 31/64, Cobalt Steel, AlCrN Coated, List Number A901zoom

Attributes

Key Value
Basic StandardDIN/ANSI
CoatingALCRONA TOP
Coating processPVD
Coating property (CTP)1
Connection (shank) desc.Cylindrical shank
Connection diameter - m.12.3
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.France
Cutting diameter - frac.31/64
Cutting diameter - inch.0.4844
Cutting diameter - mill.12.3
Cutting DirectionRight Hand
Decimal Equivalent0.4844
Depth x Dia. Ratio6xD
Depth:Dia. Ratio6xD
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishAlCrN
Drill Bit GroupingDrill Bit
Drill Bit MaterialCobalt
Drill Bit Point Angle130 Degrees
Drill Bit Size31/64 in
Drill LengthJobber
Drill StyleJobber
EDP number635636
Flute Length111.00 mm
Flute TypeDIN/ANSI
Hand (Cutting direction)Right
ItemJobber Drill Bit
Length chip flute - mil.111
List NumberA901
MaterialHSS-E, Cobalt
Material applicationK - Cast iron, M - Stai.
Maximum Drilling Depth111.00 mm
Measurement SystemFractional Inch
MID number5971698
Number of Flutes2
Number of Pieces1
Ordering code ANSIA90131/64
Overall Length149.00 mm
Overall length - millim.149
Point Angle (SIG)130
Point TypeGeneral Purpose
Shank Dia.31/64 in
Shank Length38.00 mm
Shank ShapeStraight
Spiral formQuick Spiral
StandardsDIN ANSI
Usable length (ULDR)6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG9550694104.431In StockDormer0.02104.43 @ 1
thumbzoomMRO Supply6073386127.291In StockDormer Pramet127.29 @ 1
