Attributes
| Key | Value |
|---|---|
| Application | For Metalworking |
| Basic Standard, Flute Type | DIN/ANSI |
| Coating, Drill Bit Finish | Bright |
| Connection (shank) description | Cylindrical shank |
| Connection diameter - millimeter (DCON MS), Cutting diameter - millimeter (DC) | 15.48 |
| Coolant Through | External Cooling Supply |
| Country of Origin (subject to change) | France |
| Cutting diameter - fractional inch (DC), Sizes Included | 39/64 |
| Cutting diameter - inch (DC), Decimal Equivalent | 0.6094 |
| Cutting diameter tolerance class (TCDC) | h8 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 10xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 130 Degrees |
| Drill Bit Size | 39/64 in |
| Drill Length, Drill Style | Long |
| EDP number | 635759 |
| Flute Length | 124.00 mm |
| Grade | Heavy Duty |
| Hand (Cutting direction) | Right |

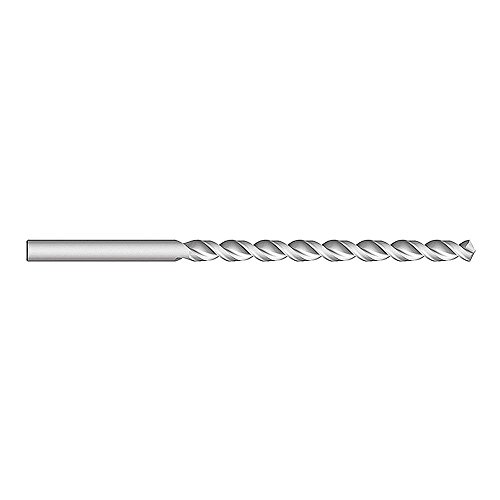

| Item | Extra Long Drill Bit |
| Length chip flute - millimeter (LCF) | 124 |
| List Number | A940 |
| Material | HSS-E |
| Material application | M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys |
| MID number | 5973248 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Ordering code ANSI | A94039/64 |
| Overall Length | 222.00 mm |
| Overall length - millimeter (OAL) | 222 |
| Point Angle (SIG) | 130 |
| Point Type | Non-Conventional Point |
| Shank Shape | Straight |
| Spiral form | Quick Spiral |
| Standards | Not Rated |
| Surface treatement | Original surface |
| Usable length (ULDR) | 10 |
