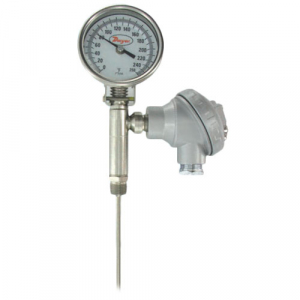

<p><strong>Dwyer, BTO360121, Series BTO Bimetal Thermometer with Transmitter Output, 3"Dial, 6" Stem Length, Range 50-400?F. </strong> </p> <p><strong>The Series BTO Bimetal Thermometer with Transmitter Output </strong> eliminates the need for a separate thermometer and transmitter. By only needing one connection, the BTO series reduces installation cost and saves space. The head-mount transmitter is located in a weatherproof thermal head located on the side of the stem. The BTO series is ideal for use on power generating boilers, skid mounted compressors, and thermal oxidation systems. </p>
Attributes
| Key | Value |
|---|---|
| Accuracy | ?1% of full scale. |
| Dial Size | 3". |
| Enclosure Rating | NEMA 4X (IP65). |
| Housing Material | 304 SS. |
| Lens | Glass. |
| Loop Resistance | 1045?. |
| Output Signal | 4 to 20 mA. |
| Power Consumption | 38 mA. |
| Power Requirement | 10 to 33 VDC. |
| Process Connection | 1/2" NPT. |
| Resolution | 5?F. |
| Temperature Limits | Ambient: -58 to 185?F. |
| Weight | 1.95 lb. |
| Wetted Material | 304 SS. |
