mpn:
brand:
manufacturer:
MPN:
Description:

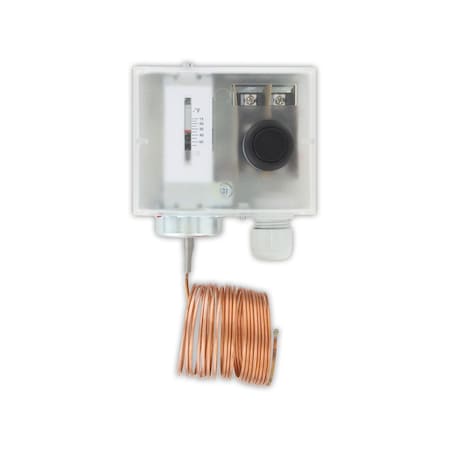

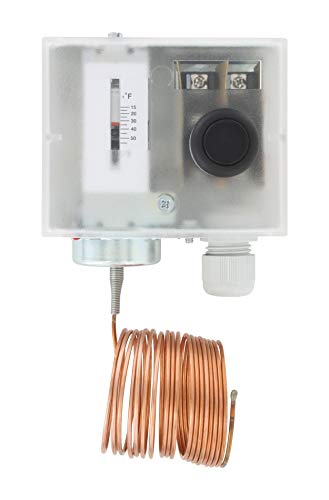

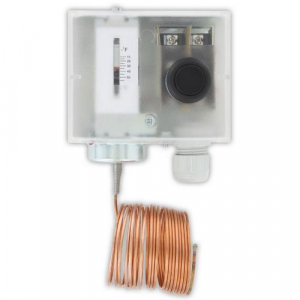

<p><strong>Dwyer, DFS2-DA20, Low Limit Freeze Protection Switch, 10 ft Capillary with Automatic Reset </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Vapor-filled copper capillary sensing element </li> <li>Joint spring protector at capillary-bellow connection </li> <li>Set point safety-lock protection and simple adjustment </li> <li>Easy installation and wiring </li> <li>Automatic reset </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>HVAC equipment </li> <li>Heat exchangers and cooling coils </li> </ul> <p>Protects cooling coils in air handler systems by preventing frost build up. The thermostat and its capillary sensing element provide an antifreeze function by sensing the lowest temperature along any one foot section of capillary. Reset relays signal the building management system as well as cut off the fan. The Series DFS2 will detect temperature drops below the fixed safety value (set point) which can be set as low as 34?F (1?C) utilizing the visual set point indicator and set point screw. </p>
Weight:
0.1
Weight:
0.1 LB
Preferred Price:
590.15
Price:
590.15
Min Simple Price:
333.61
Absolute Min Price:
473.39
Min Price:
473.39
qty:
21
simpleSku:
zM0MTY:::DFS2-DA20
sku:
zM0MTY::PR:DFS2-DA20@y0
condition:
11
seller:
us.rs-online.com
amzMan:
dwyer
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals, Approvals | CE |
| Cable Entry | (1) M20 compression fitting |
| Capillary Length | 20 ' |
| Capillary Material | Copper |
| Capillary Overload Temperature | 392?F (200?C), maximum 60 minutes |
| Deadband | 1.8?F (fixed) |
| Electrical Connections | Two each NO/NC/Common |
| Electrical Rating | 24 to 250 VAC, 15 (8) A |
| Enclosure | Galvanized steel base, ABS cover |
| Enclosure Rating | NEMA 1 (IP40) |
| Family Series | Dwyer Instruments Controllers, DFS2 Series |
| Gross Weight, Net Weight | 0 lbs |
| Humidity Limit | 0 to 95% RH, non-condensing |
| Item Number, Manufacturer Part Number | DFS2-DA20 |
| Low-level Setpoint | Factory Set: 39?F (4?C), and safety lock secured; Adjustment via screwdriver slot |
| Manufacturer | Dwyer Instruments |
| Max Temperature | 54 ?F |
| Operating Temperature | 14?F to 54?F (-10?C to 12?C) |
| Package Quantity | 1 |
| Product Series | DFS2 |
| Reset Action | Automatic |
| RoHS Compliant | No |
| Sensing Element | Vapor-filled capillary |
| Storage Temperature | 14?F to 158?F (-10?C to 70?C) |
| Weight | 1.6 lb (0.7 kg) |
| Wire Connection | Terminal with wire-retaining screws |
| Wire Size | Max. 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| us.rs-online.com | 71827889 | 333.61 | 333.61 | 1 | In Stock | Dwyer Instruments | 333.61 @ Qty: 1+ | |||
 | Zoro | G807158284 | 333.99 | 333.99 | 1 | In Stock | Dwyer | 333.99 @ Qty: 1+ | ||
 | cappusa.com | 3750779 | 337.63 | 337.63 | 1 | In Stock | Dwyer | 337.63 @ Qty: 1+ | ||
 | heavydutydepot.com | DFS2-DA20 | 341.0 | 341.0 | 1 | In Stock | Dwyer Instruments | 341.0 @ Qty: 1+ | ||
 | Galco | DFS2-DA20-DWYR | 350.81 | 350.81 | 1 | In Stock | Dwyer Instruments | 350.81 @ Qty: 1+ | ||
 | usmegastore.com | DFS2-DA20 | 352.3 | 352.3 | 1 | In Stock | Dwyer | 1.6 | 352.3 @ Qty: 1+ | |
 | Newark | 82AK4334 | 378.75 | 378.75 | 1 | In Stock | DWYER | 378.75 @ Qty: 1+ | ||
 | blackhawksupply.com | DFS2-DA20 | 402.98 | 402.98 | 1 | In Stock | Dwyer | 402.98 @ Qty: 1+ | ||
| alliedcontrols.com | DFS2-DA20 | 448.75 | 448.75 | 1 | In Stock | Dwyer | 448.75 @ Qty: 1+ |
