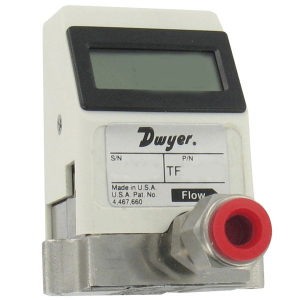

<p><strong>Dwyer, TFM-LI09, Series TFM-LI Liquid Turbine Flow Meter, 16 to 160 GPH (1 to 10 LPM), 3/8" OD connection. </strong> </p> <p>316SS Body, 0 to 5 VDC Output, LCD Indication </p> <p><strong>Series TFM-LI Liquid Turbine Flow Meters </strong> are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. </p> <p><strong>Approvals </strong> </p> <p>CE Approval </p>
Attributes
| Key ^ | Value |
|---|---|
| Accuracy, Linearity | ?1% of full scale |
| Agency Approvals | CE |
| Display | LCD, 0.39" (10 mm) digits (only in LPM) |
| Electrical Connections | Four-pin power and signal connector. A power adapter or mating cable required for operation |
| Enclosure Rating | IP10 (NEMA 1) |
| Output Signal | 0 to 5 VDC; minimum 2.5 k ? load |
| Power Consumption | 35 mA @ 12 VDC |
| Power Requirements | 11.5 to 15 VDC |
| Pressure Limits | 500 psig (34.5 bar) |
| Repeatability | ?0.2% of full scale |
| Service | Clean liquids compatible with wetted materials |
| Temperature Limits | 41 to 131?F (5 to 55?C); Storage: 32 to 158?F (0 to 70?C); Sensitivity: ?0.2% of full scale per ?C |
| Weight | 0.80 lb (380 g) |
| Wetted Materials | 316 SS, acetal, sapphire, glass, epoxy, and fluoroelastomer |
