Dwyer VFA-2-EC-SS
Dwyerzoom
brand:
manufacturer:
Description:

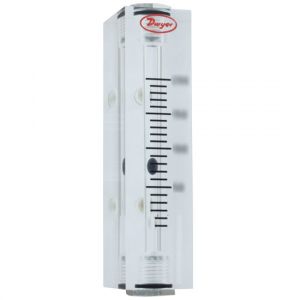

<p><strong>Dwyer, VFA-2-EC-SS, Series VFA Visi-Float Flowmeter, 2" Scale, .2-2 SCFH Air, SS Wetted </strong> </p> <p>The SERIES VF Visi-Float? Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float? flowmeters is backed by over 60 years of experience in acrylic instrument machining. </p> <p><strong>Features: </strong> </p> <ul><li>Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection </li> <li>White background allows for better visibility of the float increasing reading accuracy </li> <li>Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life </li> <li>Precision machined tapered bore enables high repeatability </li> <li>Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Medical equipment </li> <li>Laboratory equipment </li> <li>Air samplers </li> <li>Gas analyzers </li> <li>Pollution monitors </li> <li>Chemical injectors </li> <li>Cabinet purging </li> </ul>

Attributes

Key ^Value
Accuracy5% of full scale
Mounting OrientationMount in vertical position
Process Connection1/8" female NPT; End connection
Scale LengthVFA 2" typical length
ServiceCompatible gases and liquids
Temperature & Pressure Limitswithout Valve: 100 psig (6.9 bar) @ 150?F (65?C); 150 psig (10 bar) @ 100?F (38?C)
Weight4.8 oz
Wetted MaterialsBody: acrylic plastic; O-ring: Buna-N; Stainless steel metal wetted parts
