Dwyer WWDP-3-LCD

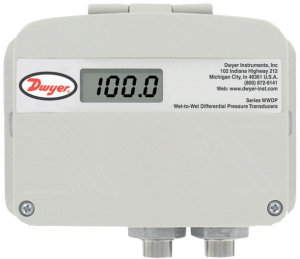

<p><strong>Dwyer, WWDP-3-LCD, WWDP-3-LCD Series WWDP Differential Pressure Transmitter, With LCD, Selectable 25, 50, 125, 250 psid, 250 psi Max. Working Pressure. </strong> </p> <p> <a rel="nofollow" target="_blank" href="https://www.dwyer-inst.com/PDF_files/WWDP_CE.pdf"> <img src="//usmegastore.com/assets_images/depiction/parsed_images/CE.jpg" > </a> </p> <p>Selectable Ranges of Uni-Directional or Bi-Directional, Selectable Outputs </p> <p><strong>The Series WWDP Wet-to-Wet Differential Pressure Transmitter </strong> offers everything in one package by having 30 field selectable variations in just 3 models. The WWDP provides field selectable unidirectional and bidirectional pressure ranges, configurable 0-5, 1-5, 0-10 VDC, and 4 to 20 mA output. It also provides an auto-zero capability. The field selectable port swap feature eliminates costly replumbing if the unit is improperly installed or if the transmitter is simply replaced. An optional LCD display is available for on-sight indication of line and differential pressure. The all cast aluminum housing is rated NEMA 4 (IP66). These features make the WWDP transmitter an ideal instrument for measuring the flow of various liquids and gases, pressure drop across filters, measurement of liquid level or pressurized vessels, and for use in energy management and process control systems. </p> <p><strong>Applications </strong> </p> <ul><li>Monitor differential pressure of a chiller. </li> </ul>
