Dwyer Instruments
Dwyer Instrumentszoom

Dwyer Instruments

mpn:
BTPM290101
brand:
Dwyer Instruments
manufacturer:
Dwyer Instruments
MPN:
BTPM290101
Description:

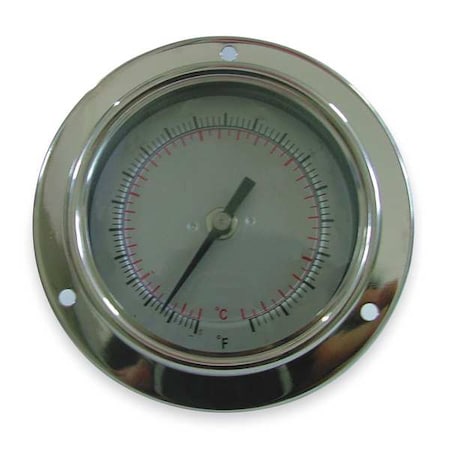

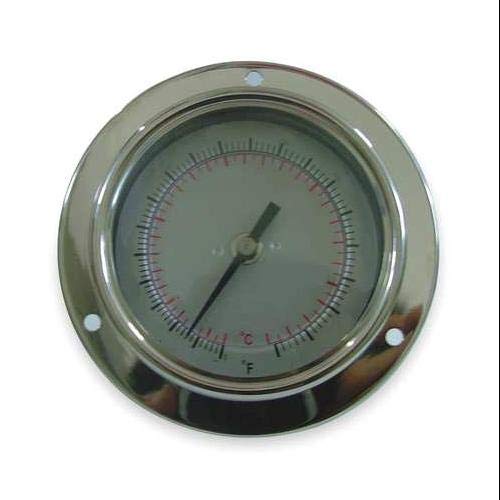

Analog Panel Mount Thermometer, 0 Degrees to 200 Degrees F, 2.5 in, 1/4 in Dia and 9 in L Stainless Steel Bimetal Stem, Probe Length 9 in, 1/4 in MNPT, Bimetal, Stem Length 9 in, 300 Stainless Steel Housing with Glass Lens
Weight:
0.0359375
Weight:
0.0359375 LB
Preferred Price:
37.97
Price:
37.97
Min Simple Price:
20.75
Absolute Min Price:
29.46
Min Price:
29.46
Dimensions:
[11.0, 4.0, 4.0]
qty:
21
simpleSku:
zM0MTY:::BTPM290101
sku:
zM0MTY::M2:BTPM290101@y0
condition:
11
seller:
energycontrol.com
amzMan:
dwyer instruments
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Accuracy?1%, +/-2%, 1 %
Brand, ManufacturerDwyer Instruments
Case Material, Housing Material300 Stainless Steel
Case Material, Probe MaterialStainless Steel
Case Size2.5 "
Case StyleCenter Back Mount
Connection1/4 NPT
Construction300 Stainless Steel Housing with Glass Lens
Current Stock22
Dial Diameter2.5 in
Dial Size2-1/2", 2 1/2 in
Family SeriesDwyer Instruments Thermometers, BPTM Series
Flange Outside Diameter3.33 in
Gross Weight0 lbs
Housing MaterialSeries 300 SS
Includes NIST-Traceable Certificate, International Shipping, NSF RatedNo
ItemAnalog Panel Mount Thermometer
Item Number, Manufacturer Part Number, MpnBTPM290101
Lens, Lens Material, Window CompositionGlass
MaterialBi-Metal
Maximum Temperature ?F200 Degrees F
Maximum Value200
Minimum Temperature ?F, Minimum Temperature F0 Degrees F
Minimum Value0
Mounting Hole Diameter(3) 5/32 in
Mounting StyleFront Flange
Net Weight0.575 lbs
Probe Built1/4 in Dia and 9 in L Stainless Steel Bimetal Stem
Probe Diameter0.25 in
Probe Length, Stem Length9 in
Process Connection1/4" NPT, 1/4 in MNPT
Product SeriesBPTM
ResolutionLess than 2% of scale
ScaleFahrenheit
Scale TypeDial
Sensor TechnologyBimetal
SKUZO-G2450016
Stem Length9 "
SubCategoryTest Instruments
Temp Range0-200 ?F
Temp. Range (F)0 Degrees to 200 Degrees
Temperature Graduations2 Degrees F
Temperature LimitsAmbient: -40 to 392?F (-40 to 200?C)
Temperature Range0 Degrees to 200 Degrees F
Thermometer TypeDirect Reading
Thread GenderMale
Thread Size1/4 in
Thread TypeNPT
UnitsSingle Scale: deg F
Weight9.2 oz (260 g)
Wetted Materials304 SS

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomenergycontrol.comBTPM29010120.7520.751In StockDWYER20.75 @ Qty: 1+
thumbzoomNewark82AK619221.4521.451In StockDWYER21.45 @ Qty: 1+
thumbzoomZoroG245001622.5922.59132Dwyer Instruments0.422.59 @ Qty: 1+
thumbzoomcappusa.com411637624.324.31In StockDwyer24.3 @ Qty: 1+
thumbzoomGalcoBTPM290101-DWYR24.4124.411In StockDwyer Instruments0.57524.41 @ Qty: 1+
thumbzoomindustrialzone.comBTPM29010125.095.08In StockDwyer0.525.0 @ Qty: 8+
alliedcontrols.comBTPM29010125.3125.311In StockDwyer25.31 @ Qty: 1+
thumbzoomblackhawksupply.comBTPM29010127.3927.391In StockDwyer27.39 @ Qty: 1+
thumbzoomMegadepotBTPM29010129.629.61In StockDwyer0.57529.6 @ Qty: 1+
thumbzoomusmegastore.comBTPM29010130.7430.741In StockDwyer0.57530.74 @ Qty: 1+
thumbzoomsimsupply.comZO-G245001632.732.7122Dwyer Instruments32.7 @ Qty: 1+
grainger.caWWG1UZE639.8685235839.868523581In StockDWYER INSTRUMENTS0.439.86852358 @ Qty: 1+
thumbzoomsustainablesupply.comC277818645.0545.051In StockDwyer Instruments0.445.05 @ Qty: 1+
thumbzoomRaptor SuppliesAB3RHH70.70590870.7059081In StockDWYER INSTRUMENTS70.705908 @ Qty: 1+
Dwyer Instruments

Dwyer Instruments BTPM290101 Bimetal Thermom, 2-1/2 in Dial, 0to200F

Dwyer Instruments BTPM290101 Bimetal Thermom, 2-1/2 in Dial, 0to200Fzoom
