Dwyer DM-1102

B009P8V9V2

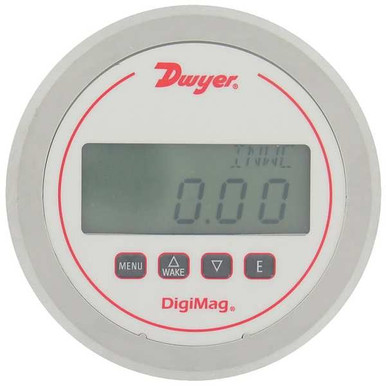

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-0.25"WC

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-0.25"WCzoom

Attributes

Key Value
Accuracy+/-1.00%, ?1% FS includ.
Accuracy Details+/-1% FS, +/-2% FS for.
Accuracy GradeNot Graded
Agency ApprovalsCE
Agency ComplianceCE
Ambient Operating Tempe.0 Degrees to 140 Degre.
ApplicationFiltration
ApprovalsCE
Auto-ShutoffNo
Backlit ScreenNo
Bar GraphNo
Basic Gauge Case Materi.Plastic
Basic Gauge Wetted PartsPlastic
Battery Run Time150 hr, 9 mo
Battery Service LifeBattery life depending .
Battery Type9V Battery
Best Sellers RankSee Top 100 in Industri.
Blowout Safety BackNo
Bolt Circle Diameter5.531 in
BrandDwyer
Case ColorLight Gray
Case ColourLight Gray
Case Depth2.33 in
Case Diameter5 in
Case MaterialGlass Reinforced Thermo.
Case ShapeRound
Case Size5 "
Case StyleRound
Compatible Process MediaAir, Compatible Gases
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 ID Tubing
Current Consumption5 mA maximum, 5 mA
Current Stock22
Data Update Frequency1 sec, 10 min
Date First AvailableMay 25, 2012
Differential Gauge Conn.1/8 in
Differential Gauge Conn.Smooth Barb
Differential Pressure R.0 to 0.25
Digit Height0.6 in
Display4-digit LCD (Digits: 0..
Display Screen TypeLCD
Display Unitsin Hg, in wc, kPa, mBar.
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
FeaturesDifferential Measurement
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Case MaterialGlass-Filled Plastic
Gauge Nominal Dial Size5 in
Gross Weight0 lbs
GTIN094713837268
Hazardous Location Rati.Not Rated
Housing MaterialGlass filled plastic
Housing MaterialsGlass filled plastic
Includes9V Battery and Instruct.
Includes BatteriesYes
Includes Mounting Hardw.Yes
International ShippingNo
IP/NEMA RatingNEMA 4X
ItemDigital Differential Pr.
Item model numberDM-1102
Item NumberDM-1102
Item Weight1.5 Pounds
LanguagesEnglish
Lead TimeExpected to ship in 1-2.
Line Power Voltage24 V DC
Long Term Stability?1% FS per year
Low Battery IndicatorNo
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1102
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
MaterialGlass filled plastic
Measurement UnitsIn. H2O
Mounting Hardware Inclu.Flange
Mounting OrientationUpright Only
MpnDM-1102
Net Weight1.18 lbs
Nominal Dial Size5 in
Non-SparkingNo
Number of Digits4
Number of Display Digits4
Number of Display LinesAdjustable
Number of Scales1 Scale
Over-Pressure Limit100% Full Scale
Package Dimensions7.5 x 6.6 x 3.7 inches;.
Panel Mount Characteris.(1) 5 17/32 Dia Holes o.
Panel-MountableYes
Peak HoldYes
Power Requirements9V battery, included, u.
Power Source9V DC Battery: 9 to 24V.
Pressure Gauge TypeDigital Differential Pr.
Pressure LimitsNormal and bi-direction.
Primary Display Range0 to 0.25 in wc
Primary TypePressure Gauge
Process Connection Loca.Back
Process Connection Size1/8 in
Process Connection TypeTubing
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
Product with faster shi.true
ResolutionDependent on Display Un.
Selectable Engineering .in w.c., psi, kPa, Pa, .
SeriesDigiMag DM-1000, DigiMa.
ServiceAir and non-combustible.
Shippingundefined (Fixed Shippi.
Size5" (127 mm) OD front fa.
SKUZO-G2622216
StandardsCE Certified
SubCategoryTest Instruments
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
TypeMechanical
UPC094713837268
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0152WCOT0179.871In Stock3Dwyer Instruments179.87 @ 1
Grainger5TCP1181.51130DWYER INSTRUMENTS181.5 @ 1
thumbzoomsustainablesupply.comC1758199227.671In StockDwyer Instruments1.19227.67 @ 1
us.rs-online.com70328532245.1411Dwyer Instruments245.14 @ 1
thumbzoomindustrialzone.comDM-1102262.01In StockDwyer1.0262.0 @ 1
thumbzoomGalcoDM-1102-DWYR269.01In StockDwyer Instruments1.18269.0 @ 1
thumbzoomMegadepotDM-1102272.31In StockDwyer1.18272.3 @ 1
thumbzoomusmegastore.comDM-1102272.31In StockDwyer1.18272.3 @ 1
thumbzoomNewark82AK4392279.751In StockDWYER279.75 @ 1
grainger.caWWG5TCP1280.226438541In StockDWYER INSTRUMENTS1.56280.22643854 @ 1
thumbzoomblackhawksupply.comDM-1102297.641In StockDwyer297.64 @ 1
thumbzoomcappusa.com4117245309.631In StockDwyer309.63 @ 1
thumbzoomhomeessentialsdirect.comDM-1102309.971In StockDwyer Instruments1.5309.97 @ 1
thumbzoomZoroG2622216316.02132Dwyer1.19316.02 @ 1
thumbzoomsimsupply.comZO-G2622216316.05122Dwyer316.05 @ 1
alliedcontrols.comDM-1102318.751In StockDwyer318.75 @ 1
thumbzoommidwestapplianceparts.comDM-1102-DW-P332.761In StockDwyer332.76 @ 1
thumbzoomRaptor SuppliesAE6JLW389.76520051In StockDWYER INSTRUMENTS389.7652005 @ 1
