Dwyer DM-1109

B009P8VJDK

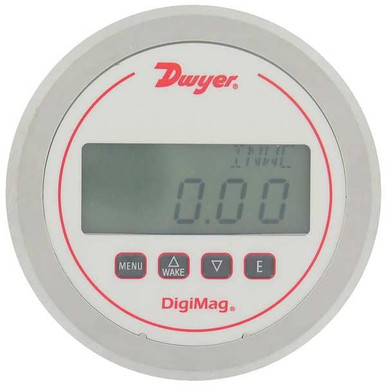

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-15"WC

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-15"WCzoom

Attributes

Key Value
Accuracy+/-1.00%, ?1% FS includ.
Accuracy Details+/-1% FS, +/-2% FS for.
Accuracy GradeNot Graded
Agency ApprovalsCE
Ambient Operating Tempe.0 Degrees to 140 Degre.
ApplicationFiltration
ApprovalsCE
Auto-ShutoffNo
Backlit ScreenNo
Bar GraphNo
Basic Gauge Case Materi.Plastic
Battery Run Time150 hr, 9 mo
Battery Service LifeBattery life depending .
Battery Type9V Battery
Blowout Safety BackNo
Bolt Circle Diameter5.531 in
BrandDwyer
Case ColorLight Gray
Case ColourLight Gray
Case Depth2.33 in
Case Diameter5 in
Case MaterialPlastic
Case ShapeRound
Case Size5 "
Case StyleRound
Compatible Process MediaAir, Compatible Gases
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 ID Tubing
Current Consumption5 mA maximum, 5 mA
Current Stock3
Data Update Frequency1 sec, 10 min
Differential Gauge Conn.1/8 in
Digit Height0.6 in
Digital Differential Pr.Digital Differential Pr.
Digital Gauge Display U.psi, mbar, in Hg, mm Hg.
Display4-digit LCD (Digits: 0..
Display Screen TypeLCD
Display Unitsin Hg, in wc, kPa, mBar.
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Case MaterialGlass-Filled Plastic
Gauge Nominal Dial Size5 in
Gauge Operating Temp. R.0 Degrees to 140 Degre.
Gross Weight0 lbs
Hazardous Location Rati.Not Rated
Housing MaterialGlass Filled Plastic
Housing MaterialsGlass Filled Plastic
Includes9V Battery and Instruct.
Includes BatteriesYes
Includes Mounting Hardw.Yes
International ShippingNo
IP/NEMA RatingNEMA 4X
ItemDigital Differential Pr.
Item NumberDM-1109
LanguagesEnglish
Lead TimeExpected to ship in 1-2.
Line Power Voltage24 V DC
Long Term Stability?1% FS per year
Low Battery IndicatorNo
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1109
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Mounting Hardware Inclu.Flange
Mounting OrientationUpright Only
MpnDM-1109
Net Weight1.18 lbs
Nominal Dial Size5 in
Non-SparkingNo
Number of Digits4
Number of Display LinesAdjustable
Over-Pressure Limit100% Full Scale
Panel Mount Characteris.(1) 5 17/32 Dia Holes o.
Panel-MountableYes
Peak HoldYes
Power Requirements9V battery, included, u.
Power Source9V DC Battery: 9 to 24V.
Powered By9V Battery or 9 to 24V .
Pressure Gauge TypeDigital Differential Pr.
Pressure LimitsNormal and bi-direction.
Primary Display Range0 to 15 in wc
Process Connection Loca.Back
Process Connection Size1/8 in
Process Connection TypeTubing
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
ResolutionDependent on Display Un.
Selectable Engineering .in w.c., psi, kPa, Pa, .
SeriesDigiMag DM-1000, DM, Di.
ServiceAir and non-combustible.
Size5" (127 mm) OD front fa.
SKUZO-G1033286
Socket MaterialGlass Filled Plastic
StandardsCE Certified
SubCategoryTest Instruments
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com70334156115.01In StockDwyer Instruments115.0 @ 1
thumbzoomcappusa.com4117248153.011In StockDwyer153.01 @ 1
thumbzoomsustainablesupply.comC1758205186.611In StockDwyer Instruments1.57186.61 @ 1
thumbzoomZoroG1033286196.0112Dwyer1.57196.0 @ 1
thumbzoomindustrialzone.comDM-1109209.01In StockDwyer1.0209.0 @ 1
thumbzoomGalcoDM-1109-DWYR214.01In StockDwyer Instruments1.18214.0 @ 1
thumbzoomMegadepotDM-1109218.31In StockDwyer1.18218.3 @ 1
thumbzoomusmegastore.comDM-1109218.31In StockDwyer1.18218.3 @ 1
thumbzoomNewark82AK4398222.551In StockDWYER222.55 @ 1
grainger.caWWG5TCP7225.718407941In StockDWYER INSTRUMENTS1.57225.71840794 @ 1
thumbzoomsimsupply.comZO-G1033286232.0413Dwyer232.04 @ 1
thumbzoommidwestapplianceparts.comDM-1109-DW-P234.591In StockDwyer234.59 @ 1
thumbzoomblackhawksupply.comDM-1109236.781In StockDwyer236.78 @ 1
alliedcontrols.comDM-1109253.751In StockDwyer253.75 @ 1
thumbzoomRaptor SuppliesAE6JMC324.86951251In StockDWYER INSTRUMENTS324.8695125 @ 1
