brand:
manufacturer:
Attributes
| Key | Value |
|---|---|
| (hidden) accessory builder | MBLT-2SB-IVPF-100-120 |
| Accuracy - Submersible Transmitter | +/-0.25% Full Scale |
| Cable Coating | Polyurethane |
| Cable Length - Submersible Transmitter | 120 ft |
| Cable Material | Polyurethane |
| Country of Origin (subject to change) | United States |
| Electrical Connections | Cable & Wire Leads |
| Electrical Protection | Yes |
| Housing Material | 316 Stainless Steel |

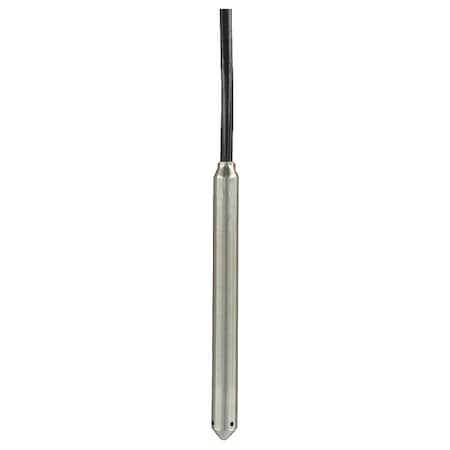

| Item | Submersible Level Transmitter |
| Manufacturers Warranty Length | 1 yr |
| Maximum Loop Resistance | 1000 Ohm |
| Maximum Operating Temperature | 176 Degrees F |
| Maximum Pressure | 100 ft wc |
| Measuring Depth | 0 to 11.5 ft |
| Measuring Depth - Submersible Transmitter | 0 to 11.5 ft |
| Minimum Operating Temperature | -4 Degrees F |
| Minimum Pressure | 0 ft wc |
| Nose Fitting | Welded |
| Operating Temp. Range - Submersible Transmitter | -4 Degrees to 176 Degrees F |
| Output - Submersible Transmitter | 4 to 20mA DC |
| Overall Diameter | 0.625 in |
| Overall Height | 6.25 in |
| Power Required - Submersible Transmitter | 10 to 33V DC |
| Pressure Range - Submersible Transmitter | 0 to 43.3 psi |
| Response Time | 50 msec |
| Seal Material | Fluoroelastomer |
| Sensor Length - Submersible Transmitter | 6.7 in |
| Series | MBLT |
| Special Features | Fits Narrow Openings |
| Standards | CE |
| Thermal Error | +/-0.25% |
| Tip Design | Bullet Nose |
| Weight | 0.235 lb |
| Wetted Materials - Submersible Transmitter | 316 Stainless Steel |
