| Accuracy | +/-0.15 Degrees C, +/-0.22 Degrees C |
| Cable Length, Probe Wire Length | 4 in |
| Connector Type | Terminal Block |
| Country of Origin (subject to change) | China |
| For Air, For Gases, For Liquids and Gels | Yes |
| For Application | AHU Monitoring, Building Automation, Chiller or Boiler Loops, VAV Temperature Sensing |
| For Solids, For Surfaces, Includes Signal Converter, Includes Thermowell | No |
| Head Connection | 0.875 Conduit Knock Out |
| Head Material | Polycarbonate |
| Includes | Housing |

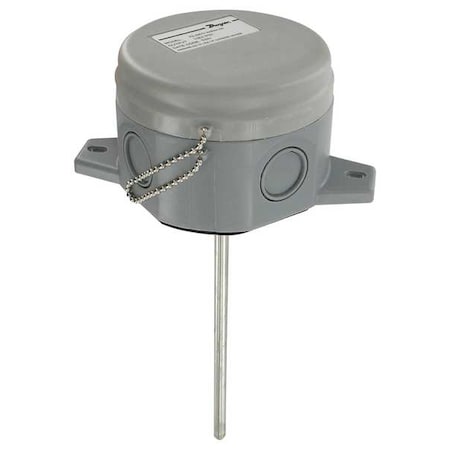

| Item | Duct Temperature Probe |
| Manufacturer Warranty Length, Manufacturers Warranty Length | 1 yr |
| Maximum Temperature ?C, Maximum Temperature C | 150 Degrees C |
| Maximum Temperature ?F, Maximum Temperature F | 302 Degrees F |
| Minimum Temperature ?C, Minimum Temperature C | -40 Degrees C |
| Minimum Temperature ?F, Minimum Temperature F | -40 Degrees F |
| Number of Wires | 2-Wire |
| Opening/Diameter | 0.235 in |
| Primary Measuring Element, Sensor Type | RTD |
| Probe Bend | Straight |
| Probe Connection Type, Probe Connector | Bare Wire |
| Probe Contact Material, Probe Material, Probe Sheath Material | 304 Stainless Steel |
| Probe Dia. | 1/4 in |
| Probe Diameter | 0.25 in |
| Probe Length | 18 in |
| Probe Size | 1/4 in x 18 in |
| Probe Temp. Measuring Element | 1000 Ohm RTD |
| Process Connection | Flange, Probe Only |
| Resistance | 1,000 ohm |
| RTD Type | 2-Wire 1,000 ohm |
| Temp. Range (C) | -40 Degrees to 150 Degrees |
| Temp. Range (F) | -40 Degrees to 302 Degrees |
| Temperature Measuring Element | RTD, Pt 1000 Ohm |
| Temperature Range | -40 Degrees to 302 Degrees F/-40 Degrees to 150 Degrees C |
| Use | Air and Gases |
| Wire Length | 4" |
