- mpnB009UY7VVI
- brandname: Eaton
- manufacturername: Eaton

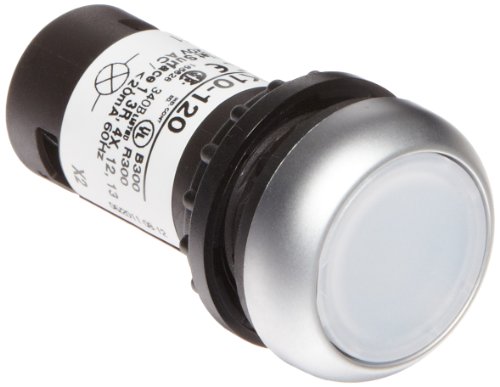

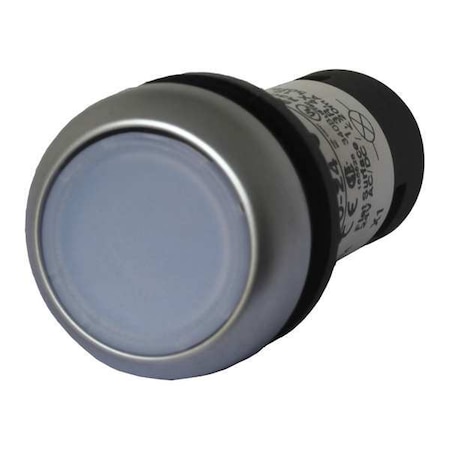

Eaton C22-DRL-W-K10-120 Pushbutton Switch, Illuminated, Flush Mounted, Maintained Operation, White LED Color, Silver Bezel Color, SPST-NO Contacts, 120VAC Voltage
- Brand: Eaton
- PartNumber: C22-DRL-W-K10-120
- Model: C22-DRL-W-K10-120
- Color: White
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Eaton
- Label: Eaton
Attributes
| Key | Value |
|---|
| Action | Maintained (Field Conve. |
| Actuator Type | Flush Button |
| Approvals | IEC 60947 ; EN 60947 ; . |
| Basic Material | Plastic |
| Bezel | Silver Coated Polycarbo. |
| Button Color | White |
| Color | White |
| Contact Configuration | 1NO |
| Contact Form | 1NO, SPST NO |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24. |
| Country of Origin (subj. | Germany |
| Family Name | Global Modular Family |
| Head Material | Polycarbonate |
| Height | 2.15 Inch |
| Illumination | Illuminated |
| Indicator | Led |
| IP Rating | 67, 69K |
| Item | Illuminated Push Button |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 120V AC |
| Lamp Type | Led |
| Lamp Voltage | 120 |
| Length | 1.17 in |
| NEMA Contact Rating Des. | A600 |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Number of Operators | 1 |
| Operation | Maintained |
| Product Type | Illuminated Push Button |
| Series | C22 Series |
| Size | 22.5 mm, 22 mm |
| Standards | CCC, CE, CSA, IEC 60947. |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Type of Operator | Flush Button |
| UPC Code | 4015081334957 |
| Voltage Rating | 120 V |
| Weight | .1 Pound |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6217942 | 50.95 | 1 | In Stock | 15 | Eaton | 0.06 | 50.95 @ 1 |
| us.rs-online.com | 70058515 | 82.02 | 1 | In Stock | | Eaton - Cutler Hammer | 0.1 | 82.02 @ 1 |
 | kempstoncontrols.co.uk | C22-DRL-W-K10-120 | 217.5368715 | 1 | In Stock | | Eaton | | 217.5368715 @ 1 |
