Description:

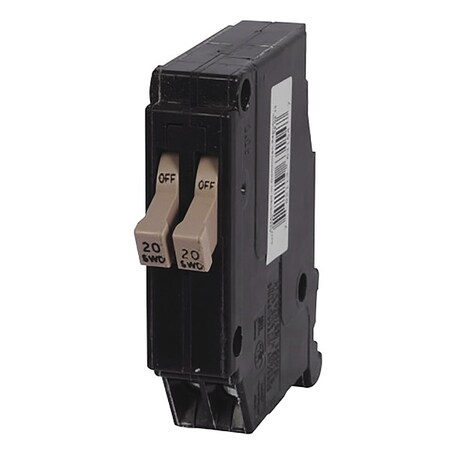

Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Tandem, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series CH, Phase Single, Series CH, Max. AIR Rating 10kA at 120/240V AC, For Use With Type CH Loadcenters, Length 0.9 in, Width 0.75 in, Depth 2.6 in, Min. Wire Size 14 AWG, Max. Wire Size 8 AWG, Standards UL 489, UL Listed
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 120/240V AC |
| Amps | 20 A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Tandem |
| DC Voltage Rating | Not Rated |
| Depth, Height | 2.6 in |
| For Use With | Type CH Loadcenters |
| Interrupt Rating | 10 kA |
| Item | Circuit Breaker |
| Length, Length (Straight Wireway) | 0.9 in |
| Max. AIR Rating | 10kA at 120/240V AC |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Number of Poles | 1 |
| Phase | Single |
| Product Width | 0.7 in |
| Series | CH |
| Standards | UL 489, UL Listed |
| Type | Type CHT twin breaker |
| Width | 0.75 in |
| Wire Size | #14-8 AWG Cu/Al |
