Description:

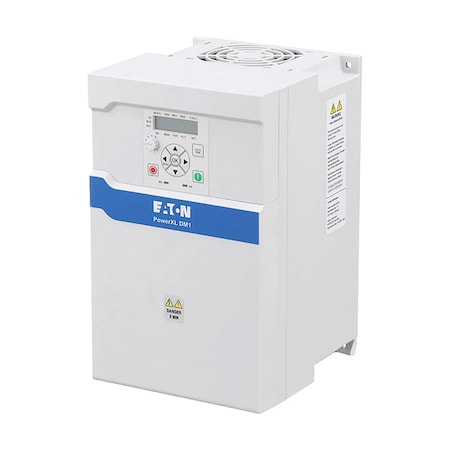

Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, 25 hp, Maximum Output Current 31 A, 38 A, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating IP00
Attributes
| Key ^ | Value |
|---|---|
| Brake Chopper Included, Dynamic Braking, Ethernet Port Included | Yes |
| Enclosure | Open |
| Enclosure Rating | IP00 |
| Input Frequency | 50/60 Hz |
| Input Type | Analog, Digital |
| Input Voltage Range | 380 to 480V AC |
| Item | Drive |
| Maximum Output Current | 31 A, 38 A |
| Maximum Output Power | 20 hp, 25 hp |
| Number of Inputs | (1) Analog, (4) Digital |
| Number of Outputs | (2) Relay |
| Output Frequency Range | 0 to 400 Hz |
| Output Type | Relay |
| Overall Depth | 7 5/8 in |
| Overall Height | 11 3/4 in |
| Overall Width | 7 1/4 in |
| Package Quantity | 1 |
| Protection | DC Bus Overvoltage Control, Earth Fault Protection, Input Phase Supervision, Motor Overload Protection, Motor Phase Supervision, Motor Stall Protection, Motor Underload Protection, Overcurrent Protection, Overvoltage Protection, Surge Protection, Undervoltage Protection, Unit Overtemperature Protection |
| Series | DM1 |
| Start/Stop Control | Programmable |
| Starting Torque | 200% |
| Torque Application | Constant Torque, Variable Torque |
