| Application | Air, Water, Hydraulic, Low Pressure Fluid Conveyance |
| Color, Hose Color | Gray |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water |
| Country of Origin (subject to change) | United States |
| Cover Material, Hose Cover Material | Vinyl Nitrile |
| Dash Size | 6 |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Hose Configuration | Bulk Hose |
| Hose Inside Dia. | 3/8 in |
| Hose Inside Dia. (In.) | 3/8 |
| Hose Length | 250 ft |
| Hose Length (Ft.) | 250 |
| Hose Outside Dia. | 15/16 in |
| Hose Outside Dia. (In.) | 43/64 |
| Hose Reinforcement Material | Fiber |
| Hose Tube Material, Tube Material | Nitrile |

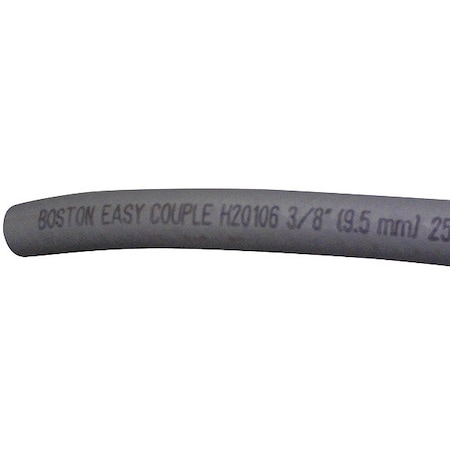

| Item | Easy Couple Hose |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Bend Radius (In.) | 3 |
| Operating Pressure (PSI) | 300 |
| Reinforcement | Fiber Braid |
| Safety Factor | 4:1 |
| Series | H201 |
| Temp. Range | -40 Degrees to 260 Degrees F |
| Temp. Range (F) | -40 Degrees to 200 Degrees |
| Type | Low Pressure |
