- mpnXTCE025C01TD
- brandname: Eaton
- manufacturername: Eaton

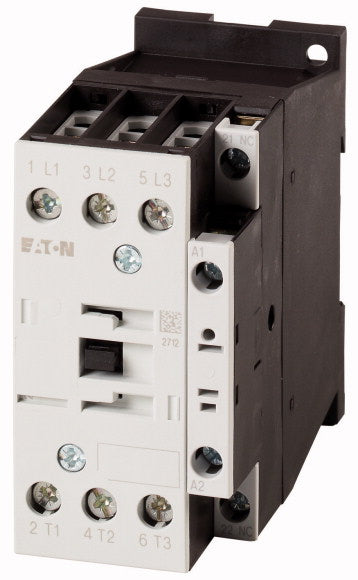

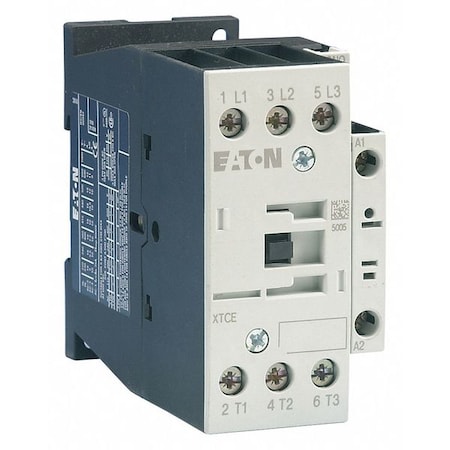

Eaton XTCE025C01TD Contactor 3p Fvnr 25a Frame C 1nc 24-27vdc Coil
- Binding: Misc.
- Manufacturer: Eaton
- Label: Eaton
Attributes
| Key | Value |
|---|
| Action | Non-Reversing |
| Amps | 25 |
| Application | Elec Assemblies, Panels. |
| Approvals | UL Listed ; CSA Certifi. |
| Aux. Contact Configurat. | 1NC |
| Auxiliary Contact | 1 NC |
| Auxiliary Contact Form | 1NC |
| Brand | Eaton |
| Catalog Number | XTCE025C01TD |
| Certification Listings | CSA, EN 60947, IEC 6094. |
| Coil Power | 24 Vdc |
| Coil Voltage | 24VDC, 24-27 Vdc |
| Coil Volts | 24 V DC |
| Contact Configuration | 1 NC, 1NC |
| Contact Current Rating | 25 A |
| Control Voltage | 24 V |
| Country of Origin | Romania |
| Country of Origin (subj. | Romania |
| Depth | 3.82 in |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class . | Frame C |
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 45 A |
| Height | 1.5 Inch, 1.77 in |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 230V (1ph) | 5 |
| HP @ 230V (3ph) | 5 |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 15 hp |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 460V (3ph) | 15 |
| Item | IEC Magnetic Contactor |
| Item Type | Contactors |
| Length | 4 in |
| Made in USA | No |
| Manufacturer | Eaton Cutler Hammer, Ea. |
| Mounting Type | DIN Rail Mount ; Panel . |
| N/C Contacts | 1 |
| Number of Poles | 3 |
| Part Number | XTCE025C01TD |
| Poles (Closed) | 3 |
| Reversing | No |
| Series | XT Series |
| Standard | CSA Certified,IEC 60947. |
| Standards | UL/CE/CSA/CCC/ATEX/IEC . |
| Terminals | Screw terminals |
| Type | Contactor, 1NC, IEC Con. |
| UPC Code | 4015082771782 |
| Width | 0 in, 1.77 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | XTCE025C01TD | 109.74 | 1 | In Stock | | Eaton Cutler Hammer | | 109.74 @ 1 |
| AmazonTP | B007V6CTXW | 114.15 | 1 | In Stock | 2 | EATON | | 114.15 @ 1 |
 | Platt.com | 0919936 | 150.54 | 1 | In Stock | | Eaton | | 150.54 @ 1 |
 | Walker Industrial | XTCE025C01TD | 150.8 | 1 | In Stock | | Eaton Cutler-Hammer | | 150.8 @ 1 |
 | controlparts.com | XTCE025C01TD | 160.6 | 1 | In Stock | | Eaton | | 160.6 @ 1 |
 | Zoro | G1408662 | 210.1 | 1 | In Stock | | Eaton | 1.21 | 210.1 @ 1 |
 | sustainablesupply.com | C2883241 | 219.79 | 1 | In Stock | | Eaton | 1.21 | 219.79 @ 1 |
 | crescentelectric.com | 90492 | 264.22 | 1 | In Stock | | Eaton | | 264.22 @ 1 |
| us.rs-online.com | 70979311 | 336.51 | 1 | 8 | | Eaton - Cutler Hammer | | 336.51 @ 1 |
 | cappusa.com | 5007855 | 339.81 | 1 | In Stock | | Eaton | | 339.81 @ 1 |
 | Newark | 91R0473 | 364.1 | 1 | 8 | | EATON CUTLER HAMMER | | 364.1 @ 1 |
| Airline Hydraulics | EATON XTCE025C01TD | 475.47 | 1 | 200 | | Eaton | | 475.47 @ 1 |
