| Action | Non-Reversing |
| Aux. Contact Configuration, Auxiliary Contact Form | 1NO |
| Coil Volts | 120 V AC |
| Country of Origin (subject to change) | Germany |
| Depth | 2.05 in |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class / Code | Frame A |
| Full Load Amps-Inductive | 6 A |
| Full Load Amps-Resistive | 20 A |
| Height, Width | 1.77 in |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 230V | 3/4 |
| HP @ 1 Phase - 240V | 3/4 hp |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| HP @ 3 Phase - 480V, HP @ 3 Phase - 575V | 3 hp |
| Hz | 50/60 |

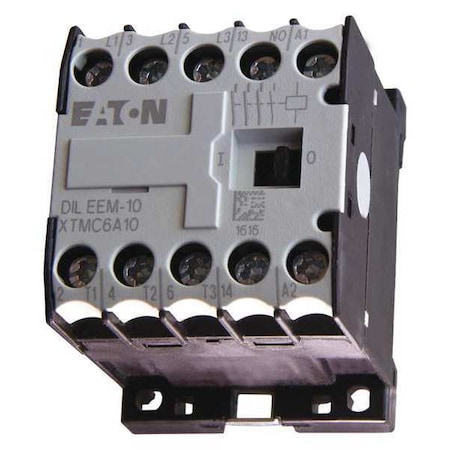

| Item | IEC Mini Magnetic Contactor |
| Number of Poles | 3 |
| Reversing | No |
| Standards | UL/CE/CSA/CCC/ATEX/IEC EN 60947 |
