mpn:
brand:
manufacturer:
MPN:
Weight:
0.025
Weight:
0.025 LB
Preferred Price:
43.53
Min Offer Price:
65.52
Price:
43.53
Min Simple Price:
23.79
Absolute Min Price:
33.78
Min Price:
33.78
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
DI0NTc:::XTMC6A10T
sku:
DI0NTc::SH:XTMC6A10T@y0
condition:
11
seller:
motorsandcontrol.com
amzMan:
cai - eaton
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Action, Function | Non-Reversing |
| Alternate Mfr Part Number | XTA291718 |
| Amps | 6.6 |
| Approvals | UL Listed ; CSA Certified ; IEC 60947 ; EN 60947 |
| Aux. Contact Configuration, Auxiliary Contact Form, Contact Configuration | 1NO |
| Auxiliary Contact, Contacts | 1 NO |
| Brand, Manufacturer | Eaton |
| Catalog Number, Mpn, Part Number | XTMC6A10T |
| Certification Listings | IEC 60947, EN 60947, UL, CSA |
| Coil Power | 24V 50/60 Hz |
| Coil Voltage | 24VAC |
| Coil Volts | 24 V AC |
| Contact Current Rating, Current Rating | 6.6 A |
| Control Voltage | 24 V |
| Country of Origin (subject to change) | Germany |
| Current Stock | 22 |
| Depth | 2.05 in, 0.118 in |
| Dimensions | 45 x 83 x 106 mm |
| Enclosure NEMA Rating | No Enclosure |
| Family Name | XT IEC Power Control Family |
| Frame / Series / Class / Code | Frame A |
| Full Load Amps-Inductive | 6 A |
| Full Load Amps-Resistive | 20 A |
| GTIN | 04015080515968 |
| Height, Width | 1.77 in |
| Horsepower Rating, HP @ 3 Phase - 480V, HP @ 3 Phase - 575V | 3 hp |
| Horsepower, Max, 1 Phase, at 115 V | 0.25 |
| Horsepower, Max, 1 Phase, at 200 V | 0.75 |
| Horsepower, Max, 1 Phase, at 230 V, HP @ 230V (1ph), N/O Contacts | 1 |
| Horsepower, Max, 3 Phase, at 200 V, HP @ 230V (3ph) | 1.5 |
| Horsepower, Max, 3 Phase, at 230 V | 2 |
| Horsepower, Max, 3 Phase, at 460 V, Horsepower, Max, 3 Phase, at 575 V, HP @ 460V (3ph), Number of Poles, Poles (Closed) | 3 |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 230V | 3/4 |
| HP @ 1 Phase - 240V | 3/4 hp |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| Hz | 50/60 |
| Input Voltage | 24 VAC |
| International Shipping, Reversing | No |

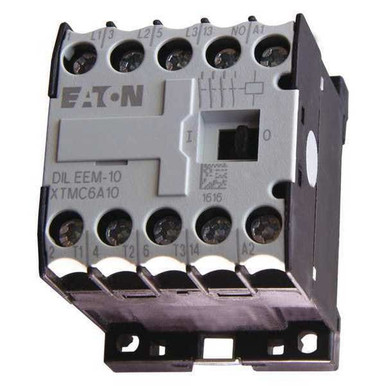

| Item | IEC Mini Magnetic Contactor |
| Length | 1.771 in |
| Manufacturer | Eaton Cutler Hammer |
| Maximum Operating Temperature | 50 C |
| Minimum Operating Temperature | -25 C |
| Mounting Type | DIN Rail Mount ; Panel Mount |
| Power Rating | 4 kW |
| Primary Type | Contactor |
| Series | XT Series |
| Size | 1.77 L x 2.28 H x 2.05 W in., 45 L x 58 H x 52 W mm |
| SKU | ZO-G2074651 |
| Special Features | Low Noise Operation ; High Degree of Climatic Proofing |
| Standards | UL/CE/CSA/CCC/ATEX/IEC EN 60947, ATEX ; CCC ; CE Approved ; CSA Certified ; IEC/EN 60947 ; UL Listed |
| SubCategory | Electrical |
| Temperature Operating Range | -25 to 50 C |
| Terminal Type | Screw Terminal |
| Terminals | Screw terminals |
| Type | IEC Contactor, Contactor, 1NO |
| UPC | 786685363929 |
| UPC Code | 4015080515968 |
| Voltage Rating | 12 to 550 ; 600 ; 12 to 220 V |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | motorsandcontrol.com | XTMC6A10T | 23.79 | 23.79 | 1 | In Stock | Eaton Cutler Hammer | 23.79 @ Qty: 1+ | ||
 | Walker Industrial | XTMC6A10T | 43.6 | 43.6 | 1 | In Stock | Eaton Cutler-Hammer | 43.6 @ Qty: 1+ | ||
 | Zoro | G2074651 | 51.1 | 51.1 | 1 | In Stock | Eaton | 0.4 | 51.1 @ Qty: 1+ | |
 | Platt.com | 0204590 | 55.76 | 55.76 | 1 | In Stock | Eaton | 55.76 @ Qty: 1+ | ||
 | simsupply.com | ZO-G2074651 | 59.21 | 59.21 | 1 | 22 | Eaton | 59.21 @ Qty: 1+ | ||
 | sustainablesupply.com | C1202057 | 60.09 | 60.09 | 1 | In Stock | Eaton | 0.4 | 60.09 @ Qty: 1+ | |
 | crescentelectric.com | 388506 | 76.38 | 76.38 | 1 | In Stock | Eaton | 76.38 @ Qty: 1+ | ||
| us.rs-online.com | 70056496 | 82.93 | 82.93 | 1 | 2 | Eaton - Cutler Hammer | 82.93 @ Qty: 1+ | |||
 | cappusa.com | 5010056 | 83.75 | 83.75 | 1 | In Stock | Eaton | 83.75 @ Qty: 1+ |
