name: Eaton
manufacturer:
MPN:
Description:

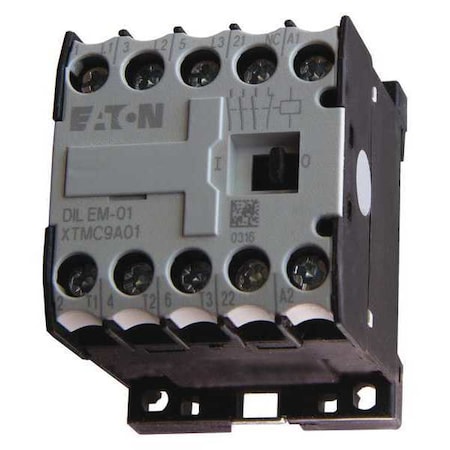

Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Terminals, Frame Size A, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC
Attributes
| Key ^ | Value |
|---|---|
| Action | Non-Reversing |
| Coil Volts | 240 V AC |
| Depth | 2.05 in |
| Frame Size | A |
| Full Load Amps-Inductive | 9 A |
| Full Load Amps-Resistive | 20 A |
| Height, Overall Width, Width | 1.77 in |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1-1/2 |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Item | Miniature IEC Magnetic Contactor |
| Mounting Hole Diameter | 0.16 in |
| Mounting Hole Distance - Height | 1.98 in |
| Mounting Hole Distance - Width | 1.38 in |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Overall Depth | 3.27 in |
| Overall Height | 2.28 in |
| Reversing | No |
