mpn:
brand:
manufacturer:
MPN:
Weight:
5.0
Weight:
2.002 LB
Preferred Price:
201.56
Price:
201.56
Min Simple Price:
113.88
Absolute Min Price:
161.69
Min Price:
161.69
Dimensions:
[5.0, 3.0, 3.0]
qty:
21
simpleSku:
DI0NTc:::FAZ-D3/3-NA
sku:
DI0NTc::DY:FAZ-D3/3-NA@y0
condition:
11
seller:
Monarch Electric
amzMan:
eaton
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| AC Voltage Rating | 277/480V AC |
| Actuator | No |
| Actuator Type | Toggle |
| Amperage | 3 |
| Amperage Rating | 3, 3 Amp |
| Amps | 3 A, 3 |
| Application | Motor Control Circuits, Industrial Controls and Automation, Communication Equipment, Computers, Medical Equipment, Relays, UPS, HACR Equipment (Heating, Air Conditioning, Refrigeration) (Internal/External), Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Other |
| Approval | UL, CSA, IEC, CE, VDE |
| Brand | Eaton |
| Brand Name | Eaton |
| Bulb Base | No |
| Bulb Base Group | No |
| Bulb Overall Shape | No |
| Bulb Shape | No |

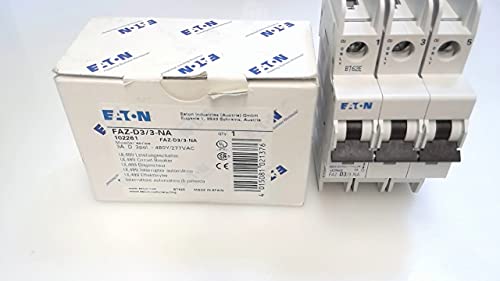

| Catalog Number | FAZ-D3/3-NA |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Color Temperature | No |
| Conductor Size | 18-6 AWG |
| Connection | Screw Terminal |
| Connection Type | Feed-Thru |
| Country of Origin | Spain |
| Curve Type | D |
| DC Voltage Rating | 48/96V DC |
| Depth | 4.25 in |
| Dimensions | 2.1 Inch Length x 2.97 Inch Width x 4.13 Inch Height |
| Dimmable | No |
| Display | FAZ-D3/3-NA FAZ-NA UL 489 MCB 3P 3A D CURVE |
| Energy Star Flag | No |
| Family / Style | FAZ-NA |
| Frame | 45, 40A |
| Frame Size | 40A/FAZ |
| Frame Type | FAZ |
| Frequency Rating | 50/60 Hz |
| Functions | LI - Long Time and Instantaneous |
| Interrupt Rating | 10 Kilo-Amp (UL/CSA), 15 Kilo-Amp (IEC), 10 Kilo-Amp |
| Interrupt Rating AC | 10 kA |
| Interrupting Rating | 14kAIC, 10kAIC |
| Item | IEC Miniature Circuit Breaker |
| Item Name | Miniature Circuit Breaker |
| Item Type | Branch protector |
| Length | 2.0 in |
| Length (Straight Wireway) | 2.0 in |
| Light Color | No |
| Made in USA | No |
| Manufacturer | Eaton |
| Manufacturer Name | Eaton |
| Manufacturer Part Number | FAZ-D3/3-NA |
| Max Wire Size | 6 AWG |
| Max. AIR Rating | 10kA at 277/480V AC |
| Max. Wire Size | 6 AWG |
| Meets UL Type | UL 489 |
| Min Wire Size | 18 AWG |
| Min. Wire Size | 18 AWG |
| Mounting | DIN Rail |
| Mounting Type | DIN Rail |
| Mpn | FAZ-D3/3-NA |
| Number of Poles | 3 |
| Phase | 3, No |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Series | FAZ, FAZ-NA |
| Standard | CSA Std. C22.2 No. 235,UL 489 |
| Standards | CSA Certified, IEC 60947-2, UL 489 Listed, UL 489 Listed, CSA C22.2 No.5 Certified, CCC Approved, IEC 60947-2 Applicable Standard, VDE Standard, ABS, RoHS Compliant, RoHS |
| Start Type | No |
| Temperature Rating | -4 to 140?F |
| Terminal Connection | Screw, Screw Clamp, Line and load |
| Trip Range | 10 - 20 x In |
| Trip Type | Thermal Magnetic, 10-20X /n, Thermal Magnetic, D Curve |
| Type | Trip Curve D, Current Limiting |
| UNSPSC | 39121603 |
| Upc | 4015081021376 |
| UPC | 01508102137 |
| Voltage | 277/480VAC, 48/96VDC |
| Voltage Rating | 277/480 Volt AC, 48/96 Volt DC |
| Volts AC | 277, 480Y |
| Volts DC | 48 |
| Width | 3.0 in |
| Wire Gauge | 18 to 6 AWG, 18 to 10 AWG |
| Wire Size | (1) 18-6 AWG, (2) 18-10 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Monarch Electric | 313539 | 113.88 | 113.88 | 1 | In Stock | Eaton | 113.88 @ Qty: 1+ | |||
| Airline Hydraulics | EATON FAZ-D3/3-NA | 145.0 | 145.0 | 1 | 263 | Eaton | 145.0 @ Qty: 1+ | |||
 | Platt.com | 0058594 | 150.74 | 150.74 | 1 | 26 | Eaton | 150.74 @ Qty: 1+ | ||
 | Carlton Bates Company | 01508102137 | 151.61 | 151.61 | 1 | In Stock | EATON | 151.61 @ Qty: 1+ | ||
 | Zoro | G7507552 | 168.99 | 168.99 | 1 | In Stock | Eaton | 0.85 | 168.99 @ Qty: 1+ | |
 | superbreakers.com | FAZ-D3/3-NA | 190.21 | 190.21 | 1 | 3 | Eaton | 190.21 @ Qty: 1+ | ||
 | Raptor Supplies | AF6MJJ | 222.1850475 | 222.1850475 | 1 | In Stock | EATON | 222.1850475 @ Qty: 1+ | ||
 | Newark | 58M6351 | 236.69 | 236.69 | 1 | In Stock | EATON CUTLER HAMMER | 236.69 @ Qty: 1+ | ||
 | crescentelectric.com | 95238 | 330.09 | 330.09 | 1 | In Stock | Eaton | 330.09 @ Qty: 1+ |
